Part Number: IS200EPDMG1B

Manufacturer: GE

Condition: Brand New

The IS200EPDMG1B is a component for the Mark VI series from GE.  The Mark VI is part of the Speedtronic Control Systems family of gas/steam turbine management.  These systems have been used for heavy-duty turbine management since the release of the Mark I in 1969.  GE engineers have spent several decades improving the reliability and design of this series as newer technology has become available to them.  The Mark VI includes Ethernet communications capabilities and has a PC-based operator interface.

The IS200EPDMG1B is designed as an Exciter Power Distribution Module.  Any of the exciter power supply modules can be switched off from this board.  It provides power for the I/O, protection, and control boards. The IS200EPDMG1B mounts on the side of the EPBP.  It accepts a 125 VDC supply from the station battery as well as either one or two 115 VAC supplies.

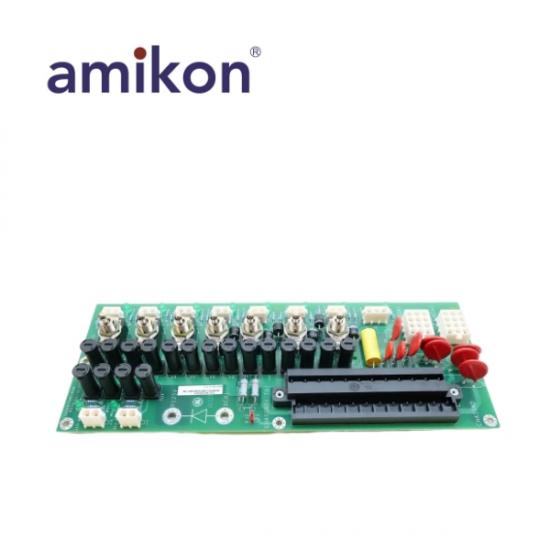

The IS200EPDMG1B is built with twelve plug connectors, all female.  These include two 12-position plugs, one 3-position plug, and nine 2-position plugs.  The board has a terminal block with two rows of twelve positions each. The board has seven toggle switches located in the center of the board.  It has eight green LEDs to indicate supply power availability. The board also has nine metal oxide varistors, which are grouped together on the board in the bottom right corner.
