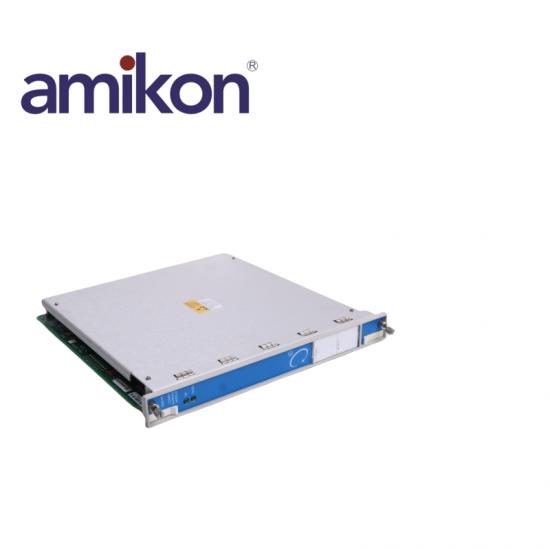

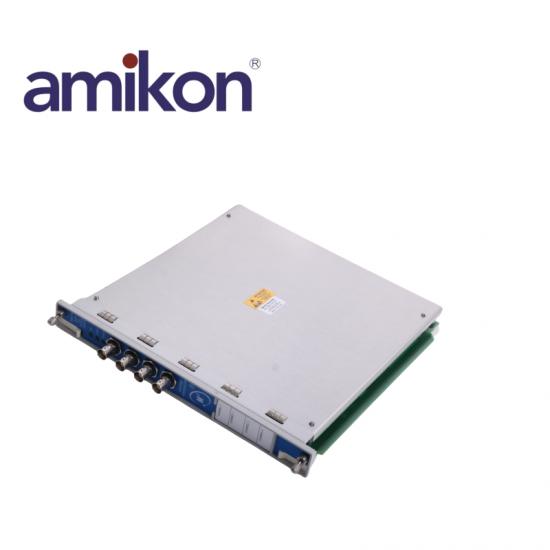

Bently Nevada 3500/92 Communication Gateway

Condition: Brand new and Original

Payment: T/T in advance

Warranty: 12 months

Bently Nevada 3500/92 Communication Gateway
Catalog 3500
Description ModbusRS232/RS422 I/O Module.
Origin United States (USA)
Dimension 16cm*16cm*12cm
Weight 0.8kg

Specifications

Inputs
Signal: Each Overspeed Detection module accepts a single transducer signal from a proximity probe transducer or magnetic pickup. The input signal range is +10.0 V to -24.0 V. Signals exceeding this range are limited internally by the module.
Input Impedance: 20 k Ω.
Power Consumption: 8.0 Watts, typical.
Transducers: Bently Nevada 3300 8 mm Proximitor®;
3300 16 mm HTPS, 7200 5 mm, 8 mm, 11 mm, and 14 mm Proximitor®; 3300 RAM Proximitor®, or Magnetic pickups.

Outputs
Front Panel LEDs
OK LED: Indicates when the 3500/53 Module is operating properly.
TX/RX LED: Indicates when the 3500/53 Module is communicating with other modules in the 3500 rack.
Bypass LED: Indicates when the 3500/53 Module is in Bypass Mode.
Test Mode LED: Indicates when the 3500/53 is in Test Mode

The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.

Supported protocols include: Modicon Modbus protocol (via serial communications); Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications); Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star configuration Ethernet networks.

The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value
Modbus registers.
