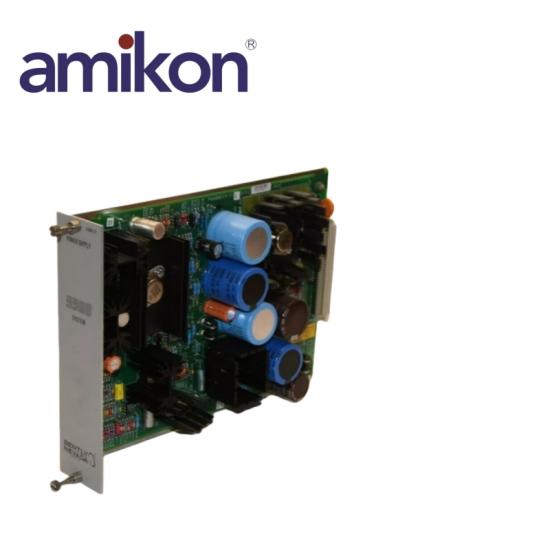

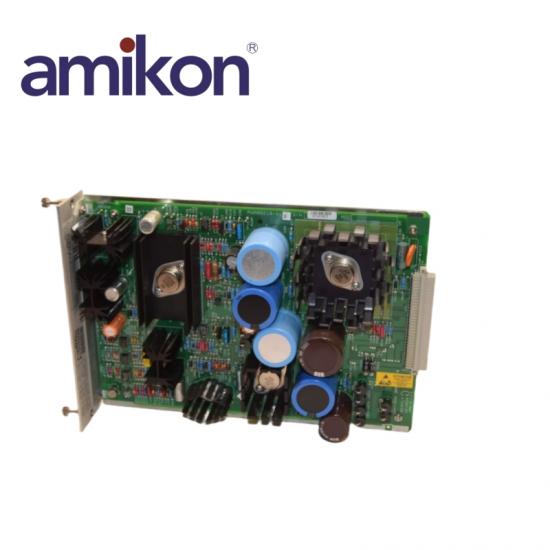

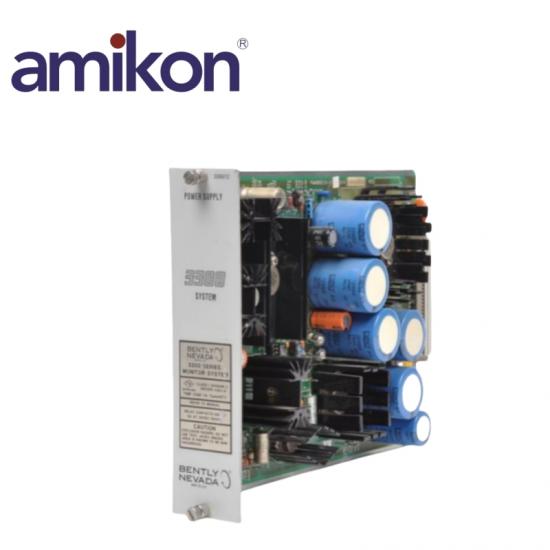

Bently Nevada 3300/12-01-20-00 Power Supply -Conformal Coated

Condition: Brand new and Original

Payment: T/T in advance

Warranty: 12 months

 3300/12-01-20-00 Bently Nevada Power Supply -Conformal Coated

 Dimensions: 2.0" x 8.0" x 13.0"(5.1 cm x 20.3 cm x 33.0 cm)
 Weight: 3 lbs 0.0 oz (1.4kg )

inputs
Inputs Power: 95 to 125 Vac, single phase, 50 to 60 Hz, at 1.0 A maximum, or 190 to 250 Vac single phase, 50 to 60 Hz, at 0.5 maximum. Field changeable via soldered jumper and replacement of external fuse.
Primary Power Surge at Powerup: 26 A peak, or 12 A rms, for one cycle.
Fuse Rating, 95 to 125 Vac: 95 to 125 Vac: 1.5 A slow blow 190 to 250 Vac: 0.75 A slow blow

Outputs
Transducer Power (internal to rack):User-programmable -24 Vdc, +0%, -2.5%; or -18 Vdc, +1%, -2%; transducer voltages are overload protected, per channel, on the individual  monitor circuit boards.
OK Relay Location: Behind the Power Supply, at the Power Supply Input Module.
Type: Single-pole, double-throw (SPDT).

Environmental
Contact Ratings (resistive load): 5 A at 28 Vdc; 5 A at 120 Vac, 50/60 Hz; 3 A at 220 Vac, 50/60 Hz.
Ratings for systems requiring agency approval: 5 A at 28 Vdc; 5 A at 120 Vac, 50/60 Hz (30 Vac for ATEX).
Contact Life: 10,000 cycles minimum at rated load.
Operation: normally energized.
Environmental Limits
Operating Temperature: 0°C to +65°C (+32°F to +150°F).
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Relative Humidity:To 95%, noncondensing.
The 3300 ac Power Supply delivers reliable, regulated power for up to 12 monitors and their associated transducers. A second Power Supply in the same rack is never required.
The Power Supply is installed in the left-most location (position 1) in a 3300 rack, and converts 115 Vac or 220 Vac into dc voltages used by the monitors installed in the rack. The Power Supply is equipped with a line noise filter as standard.
