BENTLY NEVADA

>Bently Nevada 3500/50-01-00-01 Tachometer Module


3500/50-01-00-01
3500/50-01-00-01 3500/50-01-00-01 3500/50-01-00-01

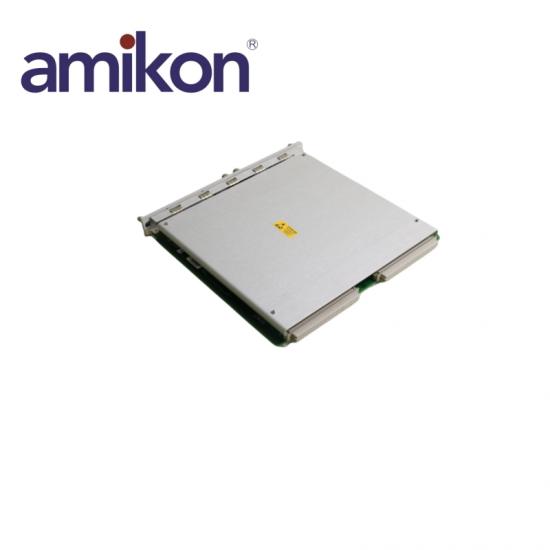

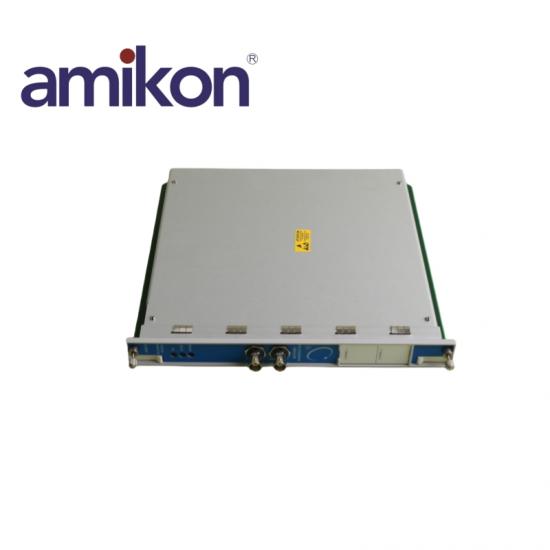

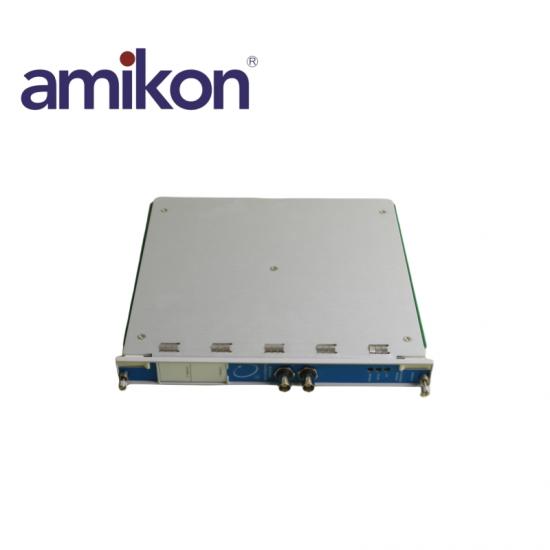

Bently Nevada 3500/50-01-00-01 Tachometer Module

Bently Nevada 3500/50-01-00-01

sales11@amikon.cn

  • Brand:

    Bently Nevada

  • Payment:

    T/T

  • Product Origin:

    United State

  • Shipping Port:

    Xiamen, China

  • Lead Time:

    In Stock

  • Part number:

    3500/50-01-00-01

  • Dimension:

    241.3 mm x 24.4 mm x 241.8 mm

  • Weight:

    0.82kg

  • Warranty:

    12 months
Inquiry now
Product Detail

ABOUT 3500/50-01-00-01

Model: 3500/50-01-00-01

Origin: USA.

Condition: Brand New and Original

Brand: Bently Nevada
Catalog: 3500
I/O Module Type: I/O Module with Internal Terminations
Agency Approval Option: None
Monitor Use: Speed Measurement
Dimensions(Height x Width xDepth): 241.3 mm x 24.4 mm x 241.8 mm
Weight: 0.82 kg

Inputs
Signal: Each 3500/50M Tachometer Module accepts up to two
transducer signals from proximity probe transducers or magnetic
pickups.
Input signal range: +10.0 V to -24.0 V Signals exceeding this range are
limited internally by the module.
Input impedance: 20 k Ω (standard) 40 k Ω (TMR) 7.15 k Ω (Internal Barrier)
Power consumption: 5.8 watts, typical

Outputs
Front Panel LEDs
OK LED: Indicates when the 3500/50M Tachometer Module is operating properly.
TX/RX LED: Indicates when the Tachometer Module is communicating with other modules in the 3500 rack.
Bypass LED:Indicates when the Tachometer Module is in Bypass Mode

The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.
