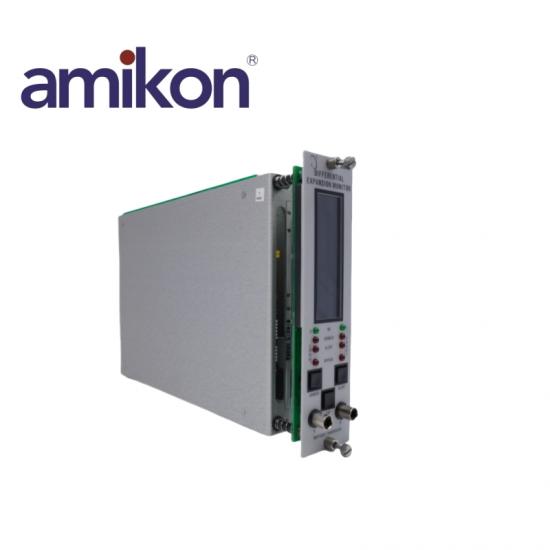

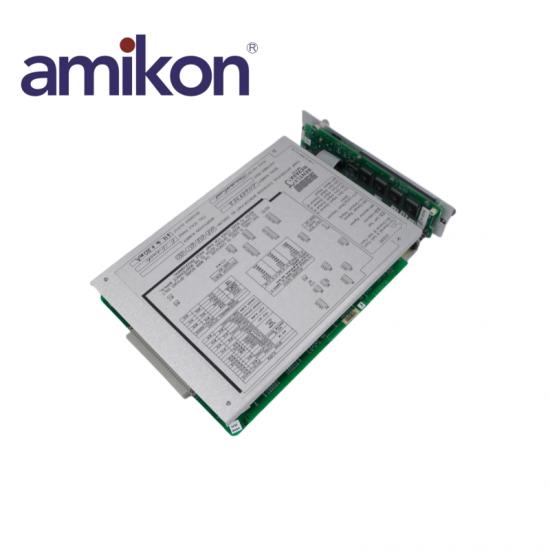

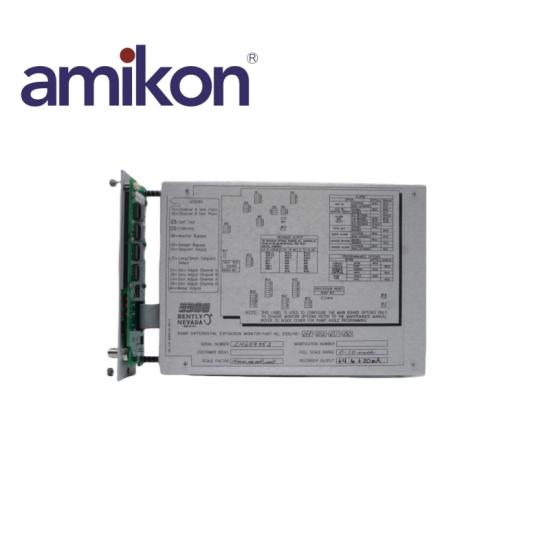

Bently Nevada 3300/46-11-03-01-00 Differential Expansion Monitor

 PRODUCT DESCRIPTION

Bently Nevada 3300/46-11-03-01-00 Differential Expansion Monitor

Condition: Brand New and Original

Origin Country: USA
Full-scale Range Option: 25-0-25 mm
Transducer Input Option: 25 mm
Alarm Relay Option: Epoxy-sealed
Agency Approval Option: Not required
Operating Temperature: 0°C to +65°C (+32°F to +150°F).
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Relative Humidity: To 95%, noncondensing.
Inputs Signal: Accepts two proximity probe transducer signals.
Input Impedance: 10 k Ω.
Signal Scale Factor: 100 m/mil (4 V/mm), 20 mV/mil
(0.787 V/mm) or 10 mV/mil (3.92 V/mm). Jumperselectable.
Power Consumption: Nominal consumption of 1.5 watts.
Outputs Recorder: User-programmable for +4 mA to +20 mA, 0 to -10 Vdc, or +1 Vdc to +5 Vdc. Voltage or current outputs are proportional to programmed monitor full-scale. A single composite recorder output is provided on Channel A. Monitor operation is unaffected by short circuits on recorder outputs.
Recorder accuracy (in addition to signal conditioning accuracy): All specified at +25°C (+77°F).
Approx Shipping Weight: 2.72kg
Approx Shipping Dims (LxWxH): 50.8x 40.64 x 30.48cm
