Prosoft PLX31-MBTCP-MBS4 ETHERNET/IP TO MODBUS

Welcome to inquiry about this model

Model number : Prosoft PLX31-MBTCP-MBS4

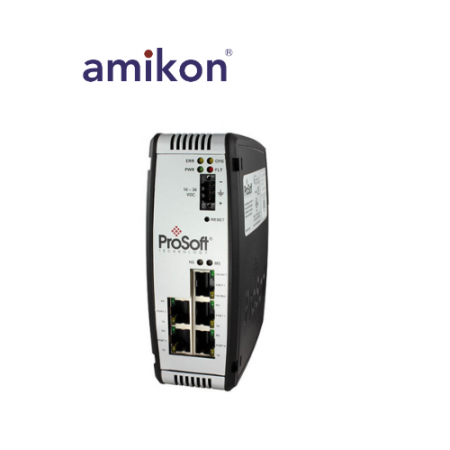

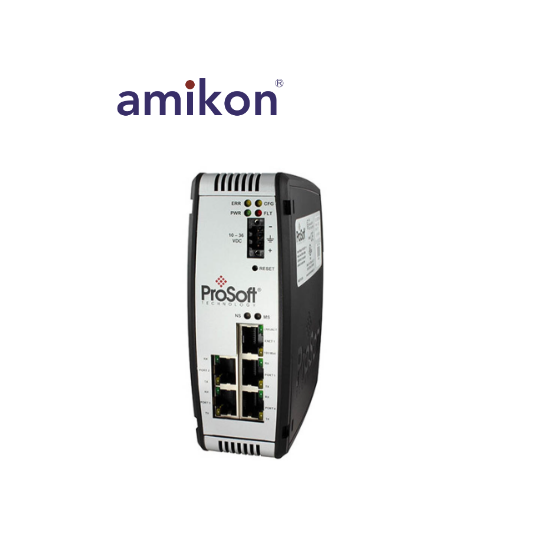

ProSoft | PLX31-MBTCP-MBS4 | Modbus TCP/IP to Modbus Serial 4 Port Gateway

Manufacturer : ProSoft

Product No : PLX31-MBTCP-MBS4

Product type : Modbus TCP/IP to Modbus Serial 4 Port Gateway

Power Supply : 24 VDC nominal, 10 to 36 VDC allowed, Positive, Negative, GND Terminals

Current Load : 24 VDC nominal @ 300 mA, 10 to 36 VDC @ 610 mA maximum

Operating Temperature : -25°C to 70°C (-13°F to 158°F)

Storage Temperature : -40°C to 80°C (-40°F to 176°F)

Shock : IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational), IEC 60068-2-27; 30G @ 18ms, 3-Axis (Non-Operational)

Vibration : IEC 60068-2-6; 5G @ 10 to 150 Hz

Relative Humidity : 5% to 95% RH with no condensation

LED Indicators : Configuration (CFG), Error (ERR), Power (PWR), Hardware Fault (FLT), Network Status (NS), EtherNet/IP™ Class I or Class III Connection Status (EtherNet/IP Only) Module Status (MS), Module Configuration Status (EtherNet/IP Only) Ethernet Communication Port Link/Activity, and 100 mbit Serial Communication Port Receive (RX) and Transmit (TX)

Ethernet Port : 10/100Mbit half-duplex RJ45 Connector Electrical Isolation 1500 Vrms at 50 to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991 Ethernet Broadcast Storm Resiliency is less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration

Number of Serial Ports : 4

Serial Port Isolation : 2500 Vrms port signal isolation per UL 1577 serial port communication signal uses RF (Radio Frequency) modulation signal as isolation media, IC chip model is SiliconLabs Si844x (Si8440,Si8441,Si8442)
