Brand:
Other Hot-sellingsPayment:
T/TMarket Price:
$123Price:
$66/123Product Origin:
USAColor:
As moduleShipping Port:
XiamenLead Time:
3-5 daysPart number:
KFD2－SR2－EX1.WHS CODE:
8537101190Warranty:
1 year|
Contact info |
Sales manager: Yuki
Mobile: +8617359287459
Email: sales15@amikon.cn
Skype: live:498b014e476a7ffd
WhatsApp: +86 17359287459
Website: https://www.amikonplc.com/
Add: Siming District, Xiamen, Fujian, China
|
Product info |

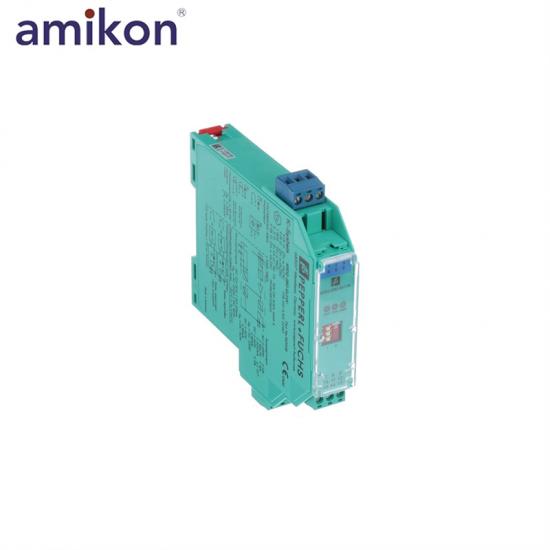

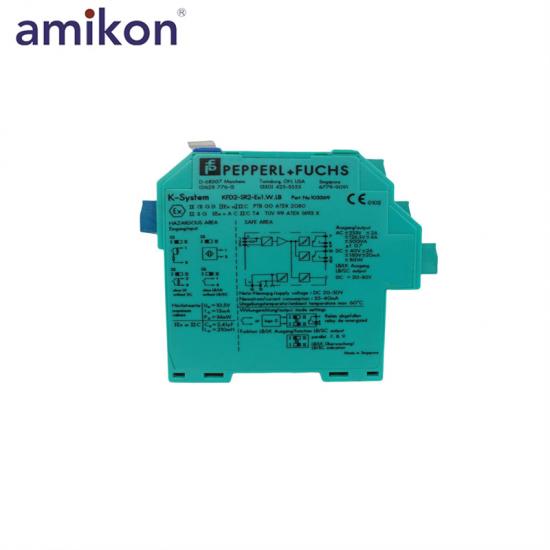

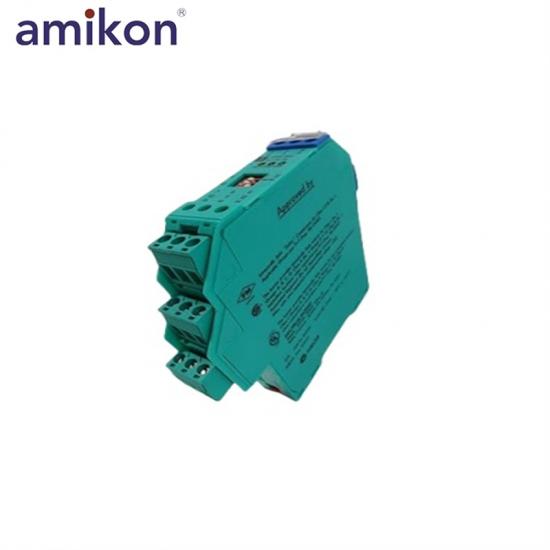

Brand: Pepperl + Fuchs
Product ID: KFD2－SR2－EX1.W
Description: Switch Amplifier
Origin from: USA
Part Type: New
Customs Tariff: 8537101190
Shipping from: Xiamen, Fujian
MAQ: 1 PC
Feature:
Single channel isolation barrier
24V DC power supply (power rail)
Dry contact or NAMUR input
Relay contact output
Line Fault Detection (LFD)
Reversible operation mode
SIL 2 (SC 3) compliant with IEC/EN 61508
Supply
Connection
Power Rail or terminals 14+, 15-
Rated voltage
19 ... 30 V DC
Ripple
≤ 10 %
Rated current
≤ 35 mA
Power dissipation
≤ 0.7 W
Power consumption
≤ 0.7 W
Input
Connection side
field side
Connection
terminals 1+, 2+, 3-
Rated values
acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current
approx. 8 V DC / approx. 8 mA
Switching point/switching hysteresis
1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection
breakage I ≤ 0.1 mA , short-circuit I > 6 mA
Pulse/Pause ratio
min. 20 ms / min. 20 ms
Output
Connection side
control side
Connection
terminals 7, 8, 9
Output
signal ; relay
Contact loading
250 V AC/2 A/cos φ > 0.75; 126.5 V AC/4 A/cos φ > 0.75; 40 V DC/2 A resistive load
Minimum switch current
2 mA / 24 V DC
Energized/De-energized delay
approx. 20 ms / approx. 20 ms
Mechanical life
107 switching cycles
Collective error message
Power Rail
|
Main brands |
ABB : Industrial robot parts of DSQC series,Bailey INFI90, DCS
Schneider(Schneider Electric)Series : 140 Series
General electric(General Electric)Series : IC693/IC697/IC695/DS200..
Westinghouse Series : 1C/5X ...
Siemens : 6DD/6DP/6ES5/6DR/6GK Series
Woodward : SPC valve position controller, PEAK15 digital controller
Foxboro : FBM203/204/217/231, FCP240/270
Bently Nevada : 3500/3300/330180-Cable..
Series : 1756/1747/1746 Series
Triconex : 3008/3511/3625/3664/3721/3700A..
Honeywell : 51/MU/MC/TC/CC ...
|
Our service |
1. The products quoted are brand new and original with a one-year warranty
2. Prices are ex works, for shipping calculations, Please send to my Email
3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days '' from our
warehouse to the destination country
4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.
5. Payment Term: 100% advance payment by bank transfer.
6. For the products '' in stock '' in the offer, our company can support video inspection
|
