Product Overview

Model: MTL5541 MTL5011B MTL5575
Product Origin: USA
Warranty: 1 Year
Payment: T/T
Condition: New with original package
Lead Time: 1-3days

Basic information

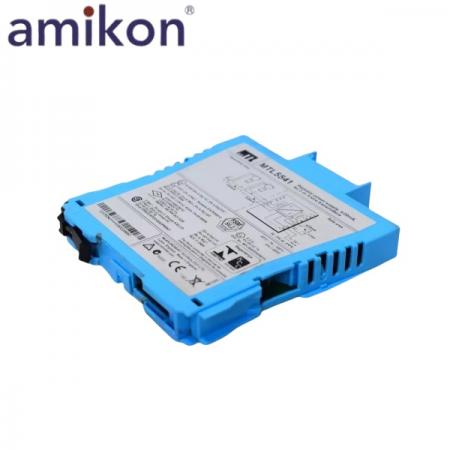

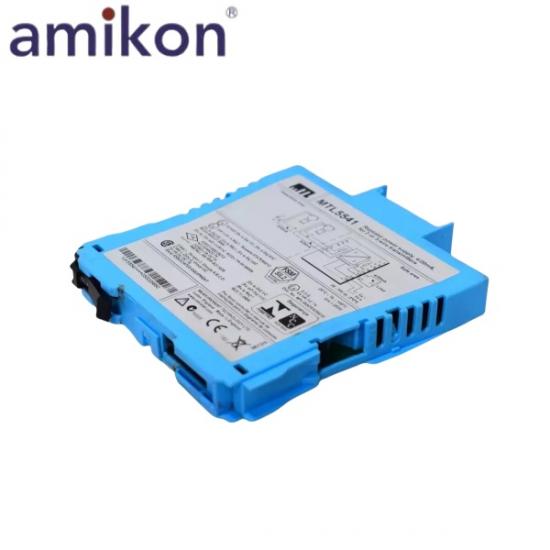

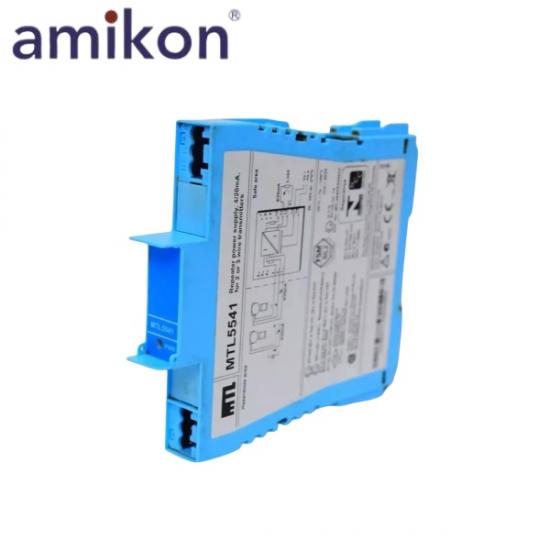

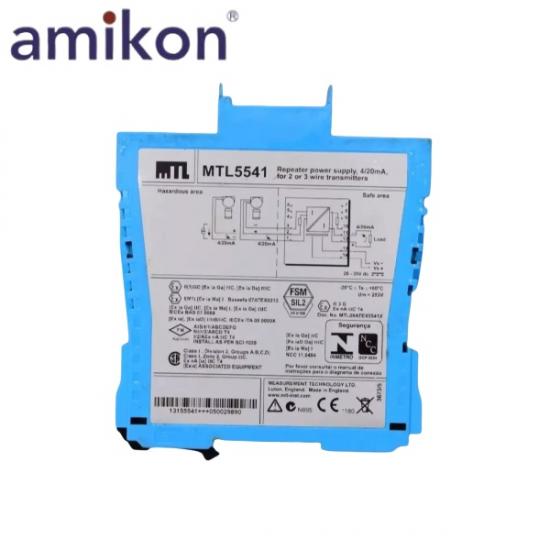

The MTL5541 Repeater Power Supply is a key component for powering and isolating field devices in hazardous locations. This device is part of the MTL5500 Series, renowned for reliable and safe signal isolation. The MTL5541 delivers both the power and repeatability required for applications in industrial environments, particularly in oil, gas, chemical, and pharmaceutical sectors. Designed with galvanic isolation, the MTL5541 enhances system safety by preventing interference and ensuring the integrity of signals transmitted from hazardous zones to control rooms.

Specifications:
Input Voltage: 20-35V DC
Output Voltage: 16.7V (Maximum)
Output Current: 65mA (Nominal)
Isolation: Galvanic isolation up to 250V AC
Power Dissipation: < 1W
Response Time: Less than 200µs
Operating Temperature Range: -20°C to +60°C
Mounting Type: DIN rail mountable
