Brand:
HoneywellPayment:
T/TMarket Price:
$123Price:
$66/123Product Origin:
USAColor:
As moduleShipping Port:
XiamenLead Time:
3-5 daysPart number:
U2-1016S-PFHS CODE:
8537101190Warranty:
1 year|
Contact info |
|
|
Sales manager: |
Yuki |
|
Mobile: |
+86-17359287459 |
|
Email: |
|
|
WhatsApp/Skype: |
|
|
Website: |
|
|
Add: |
Siming District, Xiamen, Fujian, China |
|
Item info |
|
|
ID: U2-1016S-PF |
|
|

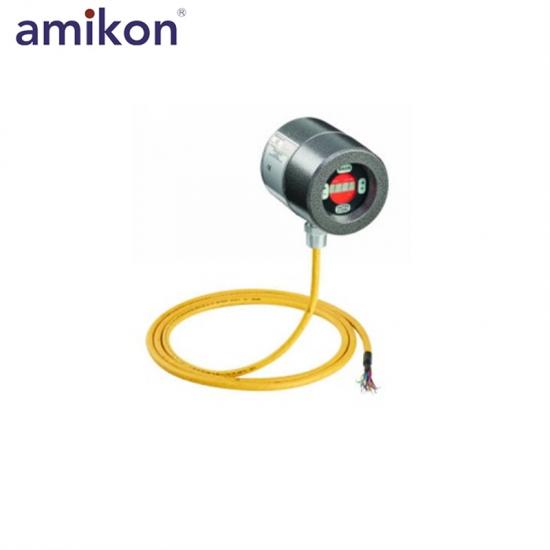

Description: DC SIGNAL PROCESSOR |
|
|
Origin from: USA |
|
|
Additional info: Power supply: 24Vac
Protection class: NEMA 4x, IP66
Zone 2 Class 1 Div 2 Group A, B, C and D
U2-101xS: II 3G Ex nA nC T5 Gc
U2-101xS-PF: II 2G Ex d IIC T6 Gb / 2D Ex d tb IIIC T85 Db
Ambient temperature: -40...70C
Maximum humidity: 85%rh
Approvals: CE (EN298) for continuous operation (Europe).
CSA and FM (US)
IECEx and ATEX (explosion proof)
NCC/Inmetro (Brazil)
EAC (Russia)
KTL (Korea)
SIL 3 Capable
Housing (HxWxD): 117mm|117mm|155mm
Weight: 2,8kg
Output signal: 4-20 mA (or 0-20 mA) with scale multiplier for remote meter or DCS and local display.
Relay outputs: Wire flame and self-check relay contacts in serial to obtain fail-safe operation.
Flame relay: SPST - Normally Open
Self-check relay: SPST - Normally Open
End switch function/capacity: 30 Vdc, 1 A (resistive)
Control model: Flame switch
Outputs: 2xSPST
Flame failure response time: 1/2/3s selectable
U2-S models with factory mounted cable and 3/4" cable gland. For use in Zone 1. Excluding PT adapter and air purge coupler.
Product description: Single sensor . Cable length 10 ft (3 m).
Comment: Ex d IIC T6
Flame detector: UVTron
|
|
|
