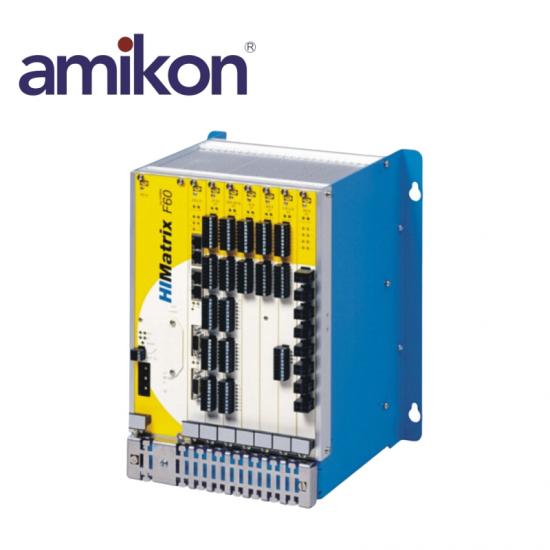

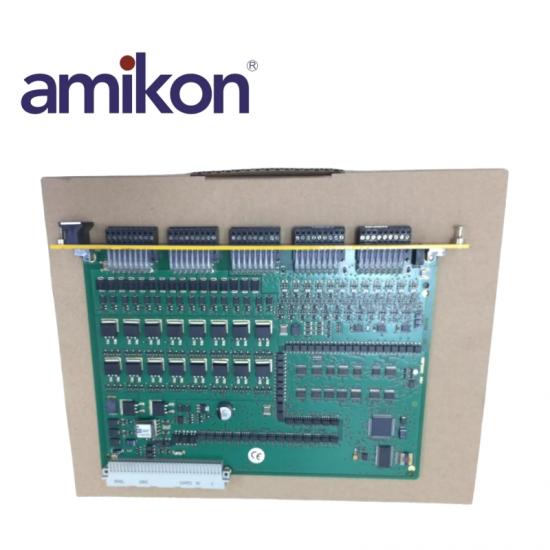

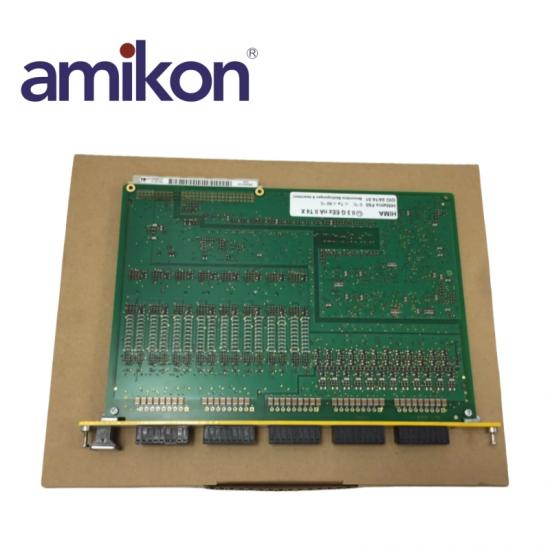

HIMA Himatrix F60 DIO 24/16 01 Safety-Related Controller Input/output module
Leonia
Email:sales11@amikon.cn
Item NO.:
F60 DIO 24/16 01Payment:
T/TProduct Origin:
GermanyShipping Port:
XIAMEN, CHINALead Time:
IN STOCKManufacturer:
HIMAPart number:
F60 DIO 24/16 01Weight:
2.7kgsWarranty:
12 MonthsHima F60 DIO 24/16 01 | Himatrix F60 DIO 24/16 01
CONTACT US
Leonia
Email:sales11@amikon.cn | Whatsapp/ Phone:+8618030175807
DESCRIPTION
Manufacurer: HIMA
Origin Country: Germany
Condition: Brand new and Original
Digital Inputs
Number of inputs: 24 (galvanically isolated)
Input voltage: nom. 24 VDC
High level: 10 V...30 V
Low level: max. 5 V
Input current
High level: 2 mA at 10 V, 5 mA at 24 V
Low level: 1 mA at 5 V
Switching point: typ. 7.5 V
Supply: 3 x 20 V / 100 mA (at 24 V), short-circuit-proof
Digital outputs
Number of outputs: 16 (galvanically isolated)
Output voltage: 18.4...26.8 VDC
Internal voltage drop: max. 2 W at 2 A
Output current(at 30 °C): 2 A each channel, max. 8 A each module, permanently short-circuit-proof
Minimum load: 2 mA for each channel
Leakage current (low level): max. 1 mA at 2 V
Operating voltage: 24 VDC, -15 %...+20 %, wss ≤ 15 %, provided by a power supply unit with safe isolation in accordance with IEC 61131-2 requirements.
Operating data: 24 VDC / 380 mA; 3.3 VDC / 150 mA
Ambient temperature: 0 °C...+60 °C
Storage temperature: -40 °C...+85 °C
Space requirement: 6 RU, 4 HP
Email:sales11@amikon.cn |Whatsapp/ Phone:+8618030175807
ABOUT US
AMIKON LIMITED is a professional manufacturer of global famous brand modules and spare parts. Our main products are: distributed control system (DCS), programmable logic controller (PLC), large servo control system. The spare parts we sell are guaranteed for one year and are rigorously tested and certified. We are now a global manufacturer of industrial automation spare parts and components.
Packing & Delivery
1)100% full New! - Original Factory Seal !
2)Warranty: 12 months!
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3 days after payment
