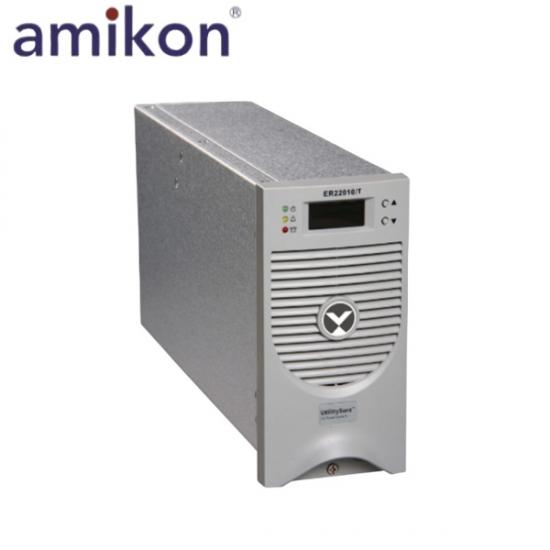

Emerson ER22010/T Rectifier Module

 Applications

Product Item： Operation Principle of ER22010/T Rectifier Module

Contact : Leonia   ▏ E-mail  : sales11@amikon.cn  ☚  ▏ Skype:  +8618030175807

Whats app：+86 18030175807   ▏  Wechat：+86 18030175807   ▏ QQ : 2851195482

Notice: The title picture is just for reference. If you want to check the picture of real item, please contact me.

 Technical Data

A Emerson supply for DELTAV is not the only source for Emerson products. Many of the Emerson products have been discontinued and therefore are no longer available from a Emerson Supplier of Emerson Automation. Amikon Limited also has many new and original Emerson DELTAV parts available for purchase.

Operation Principle of ER22010/T Rectifier Module

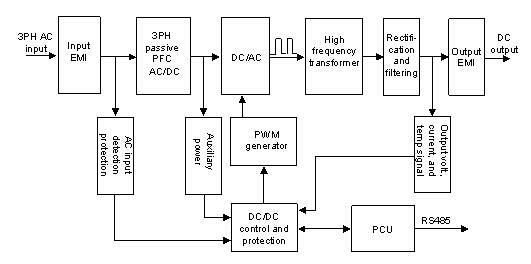

The Emerson rectifiers comprise two parts: 3-phase passive PFC and DC/DC converter circuit. Besides, there are the auxiliary power supply and the I/O detection protection circuit. The operation principle of rectifiers is shown in Figure ER22010/T

1) The 3-phase passive PFC circuit at the front-end comprises input EMI and passive PFC, which are used to rectify and filter the AC input, and to calibrate the input current, so as to ensure that the power factor of the input circuit is bigger than 0.94, meeting the related EMI and EMC standards in GB/T 17794.2.2-2003, as well as the 3-phase harmonic standard in DL/T781-2001.

2) The DC/DC converter circuit at the back end uses PWM generator to control the PFC-output DC voltage, and output DC voltage through high frequency transforming, rectification and filtering. It is used to convert the rectified voltage from the front end into the steady DC voltage output as required by the power system.

3) The auxiliary power supply is located between the input passive PFC and the DC/DC converter. It uses the DC output from the 3-phase passive PFC and powers the control circuits.

4) The input detection circuit can detect input over/under-voltage and phase failure, while DC/DC detection circuit can detect output voltage/current and heat sink temperature. All these signals are used for the control and protection of DC/DC conversion.
