Product Item： Bently Nevada TK81


Specifications

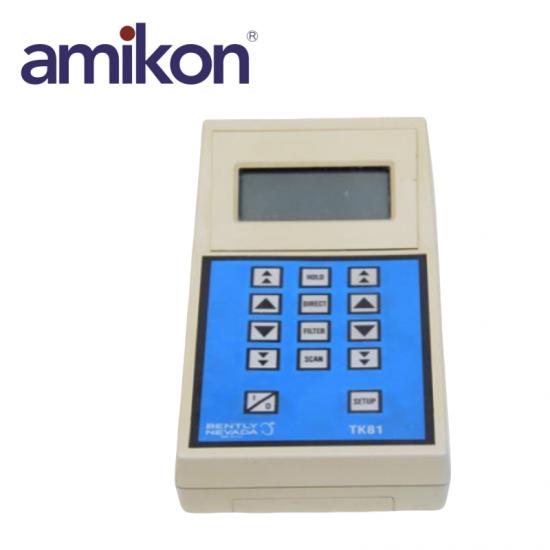

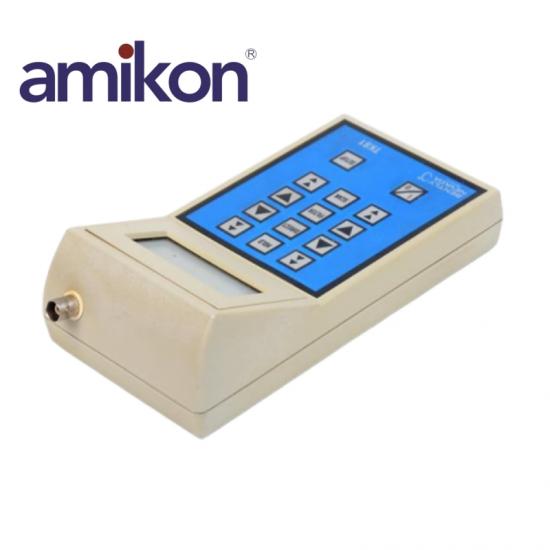

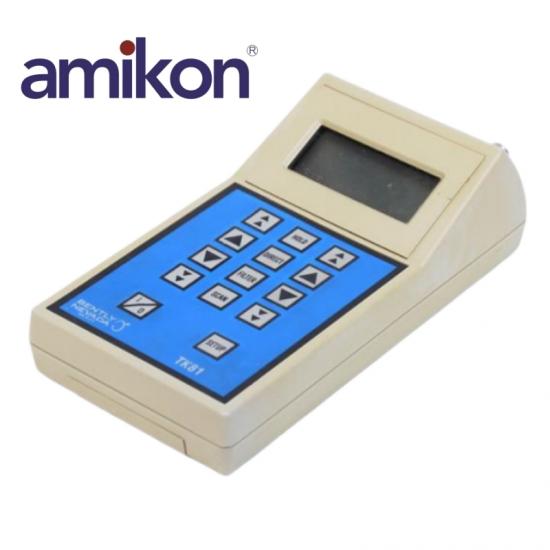

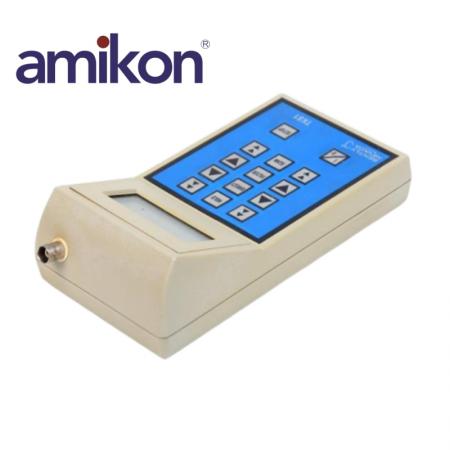

The TK81 Tunable Filter/Vibration Meter is a portable handheld instrument for basic vibration measurements. It can display vibration in both unfiltered (overall) and filtered modes. It accepts inputs from displacement, velocity, and acceleration transducers but does not provide power for them.
Its filtering capability is particularly useful for diagnosing vibration problems occurring at particular frequencies on all types of machinery.
Inputs Signal: Accepts displacement, velocity, or acceleration.
Maximum Input: 10 V peak-to-peak.
Scale Factor: Selectable from 5 to 9999 mV per engineering unit.
Input Impedance: 95 k Ω.
Frequency Response:
1.66 Hz to 1,666 Hz (100 to 100,000 RPM).
Integration: Single integration is available for frequencies above 10 Hz
(600 RPM).
Operating Range: 1.66 Hz to 1,666 Hz (100 RPM to 100,000 RPM).
Type: Digital, approximates an analog filter with a Q of 11.
Outputs
Display: 4 line by 16 character LCD
Display Units: Selectable Metric or English,peak-to-peak, zero-to-peak, or rms**.
** RMS readings may fluctuate @ < 10 Hz (600 RPM).
Accuracy: Within 5% * Non-Filtered, Non-Integrated Signals @ Full Freq Range
* Non-Filtered, Integrated Signals @ 10-16.67k Hz (600-100k
RPM)
Battery: 9-Volt alkaline transistor battery.(NEDA 1604A).
Battery Life: 20 hours nominal.
Operating Temperature:+0°C to +40°C (+32°F to +104°F).
Storage Temperature:-20°C to +70°C (-4°F to +158°F).
Note: A battery stored above +104°C
(+219°F) or below 0°C (+32°F) will have a
reduced shelf life.
Relative Humidity: To 90% noncondensing.
Height: 191 mm (7.5 in)
Width: 102 mm (4.0 in)
Depth: 58 mm (2.3 in)
Weight: 316 g (0.7 lb)
