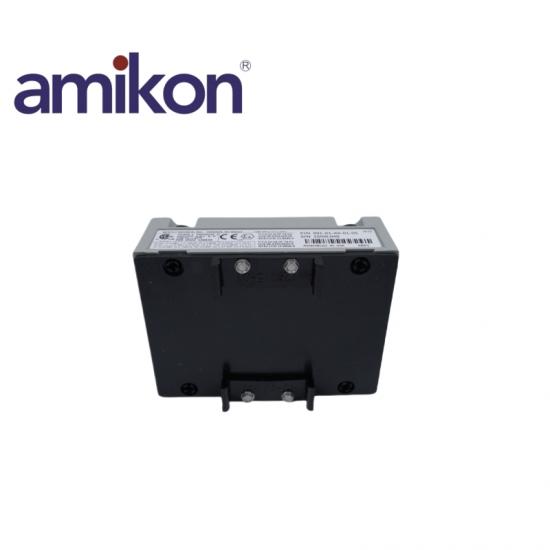

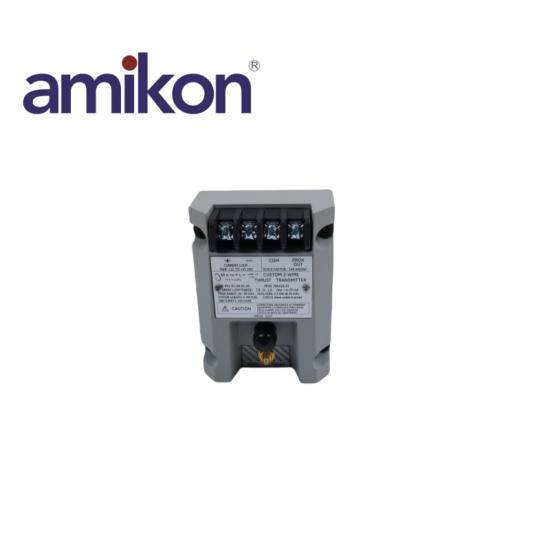

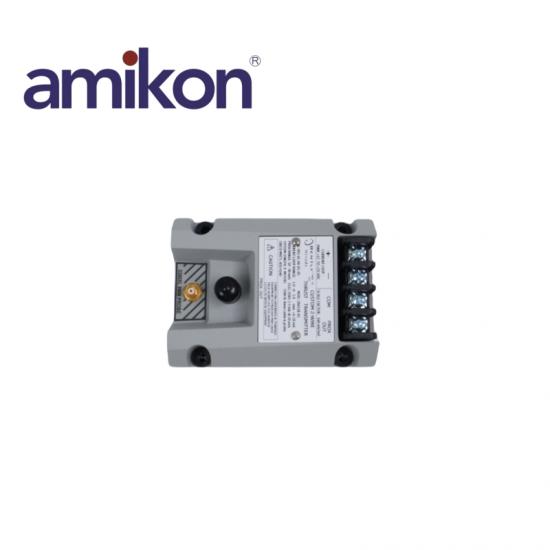

Bently Nevada 991-01-XX-01-05 Thrust Transmitter

MODEL 991-01-XX-01-05

Bently Nevada 991-01-XX-01-05 Thrust Transmitter

Condition: Brand New and Original

Origin: USA.

Weight: 0.43 kg (0.9 lbm).
Input Accepts: 1 non-contacting 3300 NSv Proximity Probe and
extension cable.
Power Requires: +12 to +35 Vdc input at the transmitter terminal.
Operating Temperature: -35°C to +85°C (-31°F to +185°F)
Storage Temperature: -51°C to +100°C(-60°F to +212°F).
Full-scale Option: 01: 0.1-0-0.1 mm
Mounting Option: 01: 35 mm DIN-rail clips
Agency Approval Option: 05: CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approval

The 991-01-XX-01-05 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional axial displacement (thrust) signal as the input to their machinery control system. The transmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
