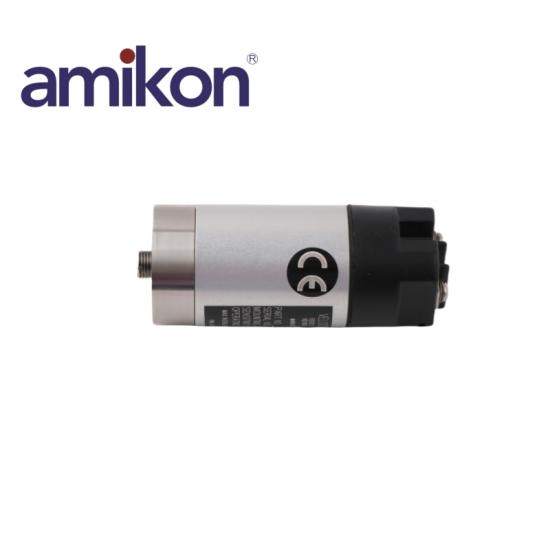

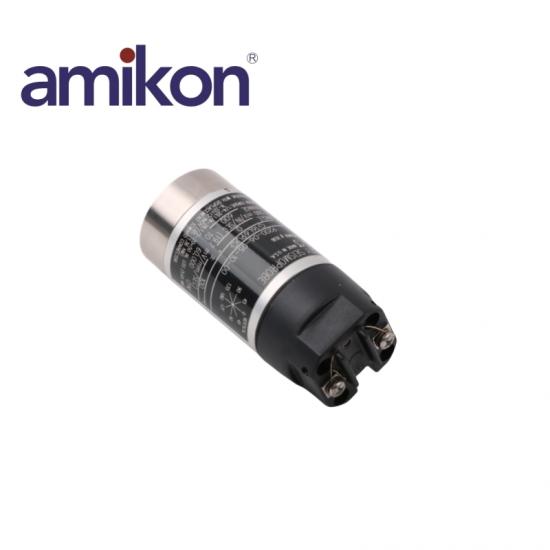

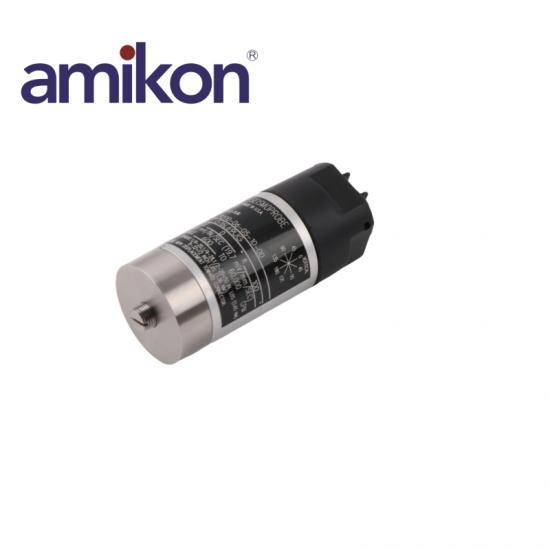

Bently Nevada 9200-06-05-10-00 Two Wire Velocity Seismoprobe Transducer

 PRODUCT DESCRIPTION

Part Number: 9200-06-05-10-00

Condition: Brand New and Original

Origin Country: USA
Manufacturer: Bently Nevada
Transducer Type: Two-Wire Seismoprobe Velocity Transducer
Estimated Lead Time: In stock
Height: 102 mm (4 in) typical (depends on connector option).
Diameter: 41 mm (1.6 in) typical.
Weight: 300 grams (10.5 ounces) typical.
Performance Specifications
Connector Option: Terminal block top mount
Mounting Base Option: Circular; M10X1 stud
Model: 9200 - Two-Wire Seismoprobe Velocity Transducer
Transducer Mounting Angle/Minimum Operating: 06 - 0 ±100, 10 Hz (600 cpm)
Connector Option: 05 - Terminal block top mount
Mounting Base Option: 10 - Circular; M10X1 stud
Agency Approval Option: 00 - No approvals required
Operating and Storage Temperature: -29°C to +121°C (-20°F to +250°F).
Transducers Specifications are at approximately +22°C (+72°F) with 25 mm/s (1 in/s) of machine casing vibration at 100 Hz (6000 cpm) with a 10 kilo ohm load unless otherwise specified.
Electrical Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of  calibration.
Frequency Response:From minimum operating frequency (see ordering information) to 1 kHz (60,000 cpm); +0, -3dB typical.
The 9200 is a two-wire transducer suitable for continuous monitoring or for periodic measurements in conjunction with test or diagnostic instruments. When ordered with the integral cable option, the 9200 has excellent resistance to corrosive environments without need of additional protection.
