Bently Nevada 9200-06-01-10-00 Two Wire Velocity Seismoprobe Transducer

Bently Nevada 9200-06-01-10-00

Quote: sales11@amikon.cn

  • Brand:

    Bently Nevada
  • Payment:

    T/T
  • Product Origin:

    United State
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    In Stock
  • Part number:

    9200-06-01-10-00
  • Dimension:

    4x4x10.5cm
  • Weight:

    0.44kg
  • HS CODE:

    8537101190
  • Warranty:

    12 months
Inquiry now
Product Detail

MODEL 9200-06-01-10-00

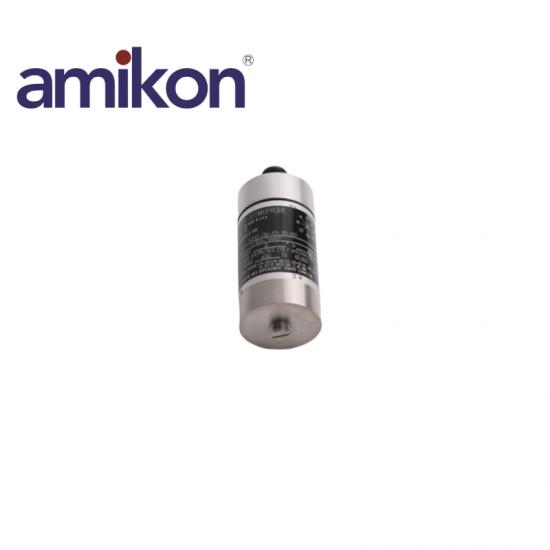

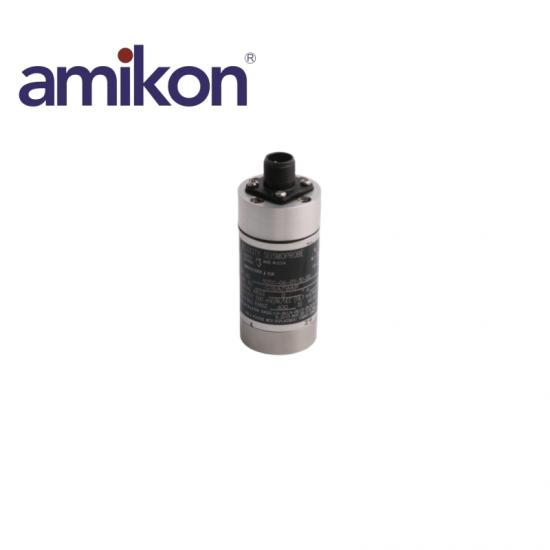

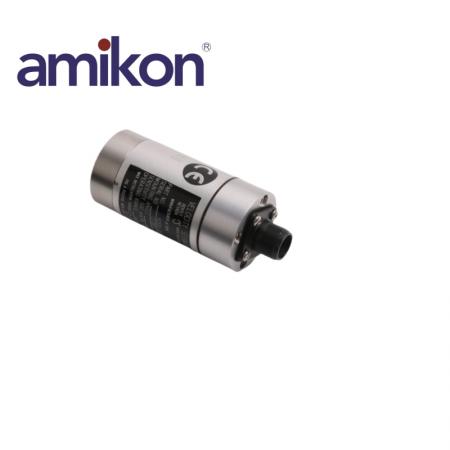

Bently Nevada 9200-06-01-10-00 Two-Wire Velocity Seismoprobe Transducer

Condition: Brand New and Original

Origin: USA.


Model: 9200-06-01-10-00
Transducer Type: Two-Wire Seismoprobe Velocity Transducer
Diemensions: 4x4x10.5cm
Weight: 0.44kg
Connector Option: Terminal block top mount
Mounting Base Option: Circular; M10X1 stud
Transducer Mounting Angle/Minimum Operating: 06 - 0 ±100, 10 Hz (600 cpm)
Connector Option: 0 1 Top Mount
Mounting Base Option: 10 - Circular; M10X1 stud
Agency Approval Option: 00 - No approvals required
Operating and Storage Temperature: -29°C to +121°C (-20°F to +250°F).
Transducers Specifications: are at approximately +22°C (+72°F) with 25 mm/s (1 in/s) of machine casing vibration at 100 Hz (6000 cpm) with a 10 kilo ohm load unless otherwise specified.
Electrical Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of  calibration.
Frequency Response:From minimum operating frequency (see ordering information) to 1 kHz (60,000 cpm); +0, -3dB typical.

The 9200-06-01-10-00 is a two-wire transducer suitable for continuous monitoring or for periodic measurements in conjunction with test or diagnostic instruments. When ordered with the integral cable option, the 9200 has excellent resistance to corrosive environments without need of additional protection.
