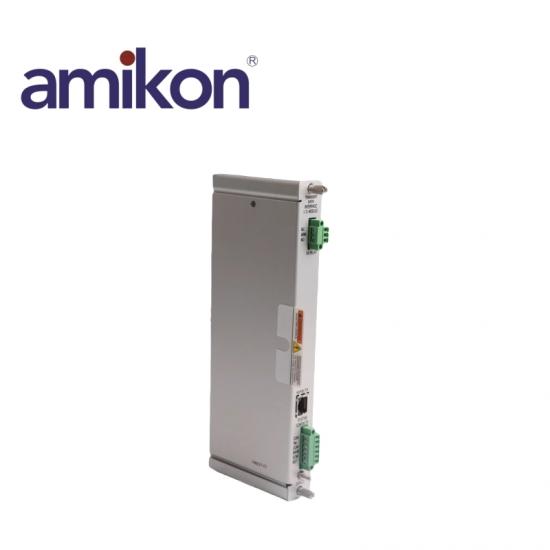

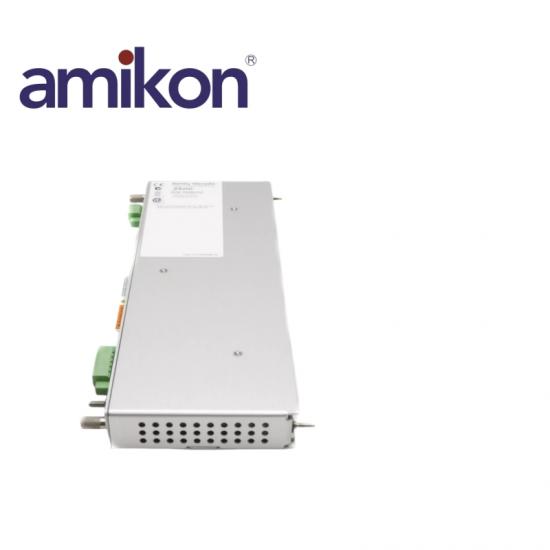

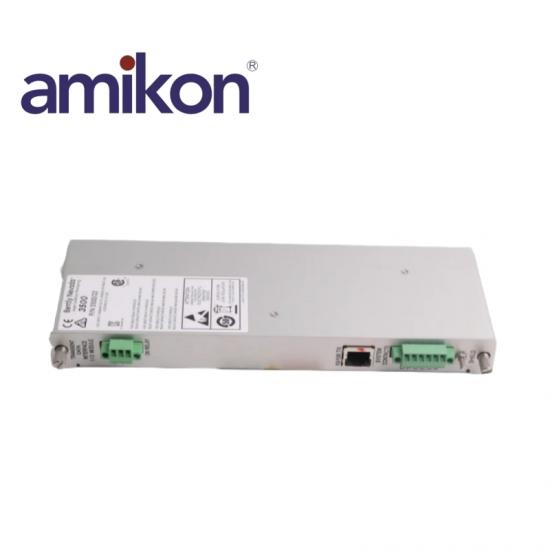

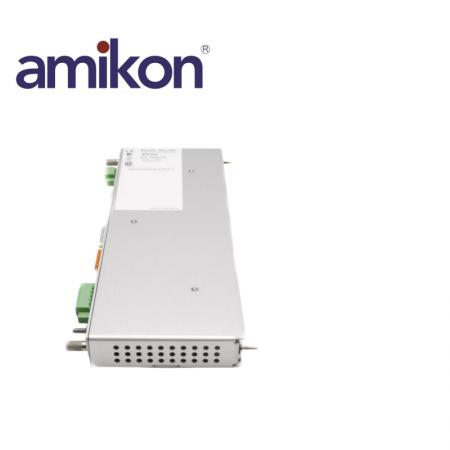

Bently Nevada 3500/22M | 14603101 I/O Module

Payment: T/T in advance

Warranty: 12 months

CONDITION: bRAND NEW AND oRIGINAL

Bently Nevada 3500/92 Communication Gateway
Catalog 3500
Description ModbusRS232/RS422 I/O Module.
Origin United States (USA)
Dimension 16cm*16cm*12cm
Weight 0.8kg

Manufacturer GE / Bently Nevada
Product Family 3500/22M, 3500-22M, 3500 22M
Item No: 3500/22M 146031-01
Type:PLC Product
Orgin:United States
Service: One Year Warranty
Delivery Time:1-3 Days

I/O MODULE

TRANSIENT DATA INTERFACE

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic
software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.

The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.
Static data capture capability is standard with the TDI.

However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient
data as well. The TDI incorporates the communication processor function within the 3500 rack.

Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall
monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).
