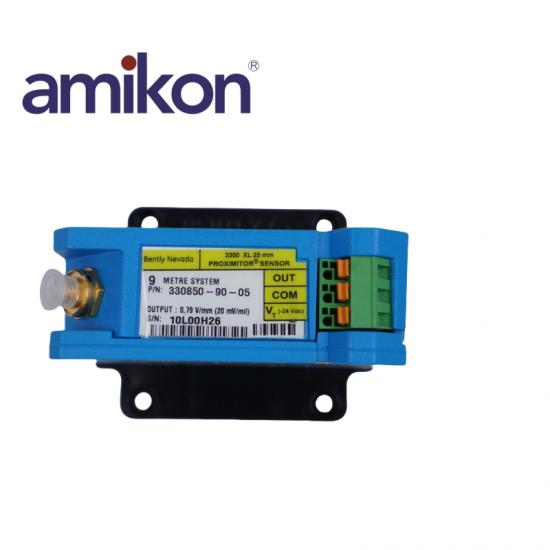

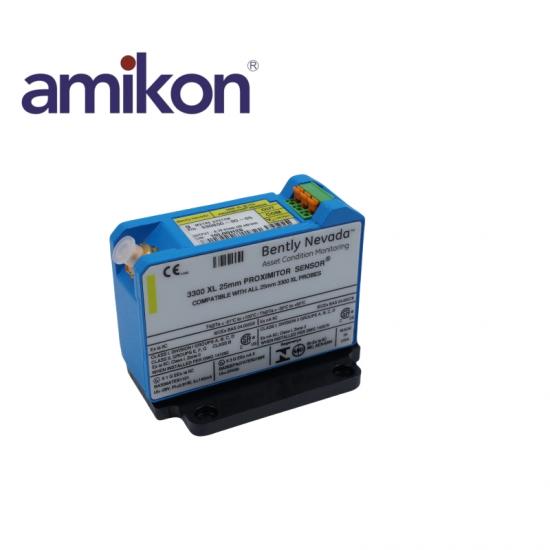

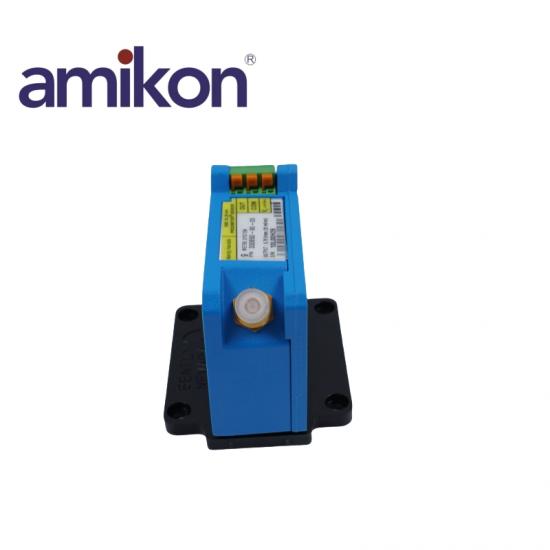

Bently Nevada 330850-90-05 3300 XL 25 mm Proximitor Sensor
Catalog 3300 XL
Dimension 16cm*16cm*12cm
Weight 0.8kg

Features:
DIN-Rail Installation or Traditional Panel Mount Configuration
Improved RFI / EMI Immunity
SpringLoc Terminal Strips
Backwards Compatible with Other Non-3300 XL Series Transducer System Components

The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor  Sensor. The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils). Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on mid-size to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing).

System Compatibility
The 3300 XL 25 mm probe comes in a large variety of case configurations to physically replace all standard 7200 25 mm, 7200 35 mm and 25 mm DE Integral transducer systems (including side and rear exit probes). The Proximitor Sensor also has an output that is identical to that of the 7200 and 25 mm DE Integral systems, allowing customers to upgrade without requiring any changes in the
monitor configuration. When upgrading from previous systems, every transducer system component (probe, extension cable, and Proximitor Sensor) must be replaced with 3300 XL 25 mm components.
