Bently Nevada 330500 Piezo-velocity Sensor

Bently Nevada 330500 Piezo-velocity Sensor

Leonia
Email:sales11@amikon.cn

  • Brand:

    Bently Nevada
  • Item NO.:

    330500
  • Payment:

    T/T
  • Product Origin:

    United State
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    In Stock
  • Manufacturer:

    Bently Nevada
  • Part number:

    330500
  • Dimension:

    25.3*63.2mm
  • Weight:

    0.142kg
  • Warranty:

    12 months
Inquiry now
Product Detail

 Basic Infor

Leonia[Email: sales11@amikon.cn ] [Skype: live:2435aba439730baa [WhatsApp: +8618030175807

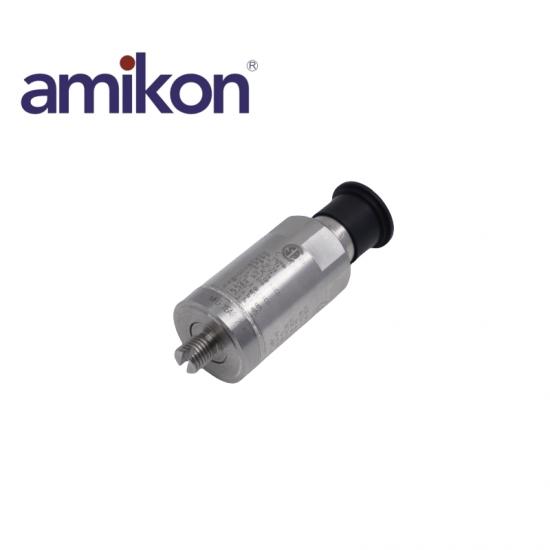

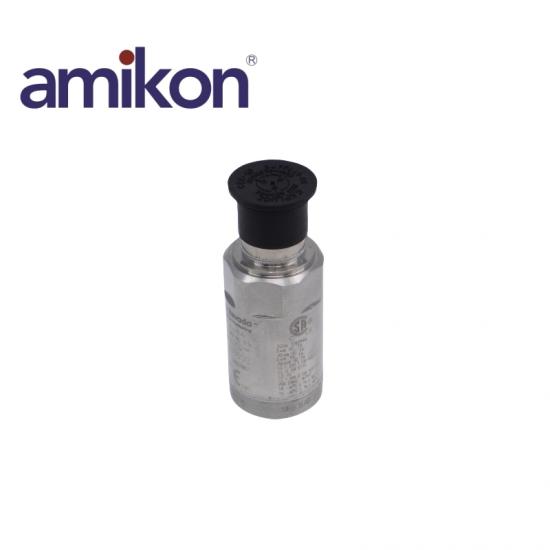

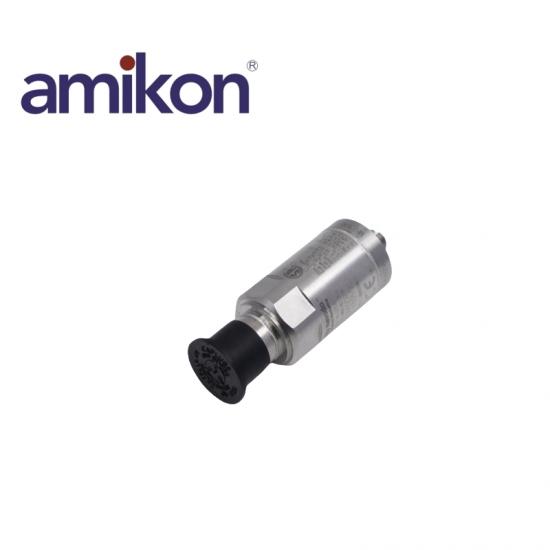

Product ItemBently Nevada 330500 Piezo-velocity Sensor

Origin: USA.

Condition: New & Original in Factory Packing



Sensitivity: 3.94mV/mm/s (100 mV/in/s) ±5%.
Frequency range: 4.5 Hz to 5 kHz ±3.0 dB or 6.0 Hz to 2.5 kHz ±0.9 dB.
Cabling: Up to a maximum cable length of 305 m (1,000 ft).
Temperature Sensitivity: -14% to +7.5% typical over the operating temperature range.
Velocity Range: 1270 mm/s (50 in/s) peak.
Mounted Resonant Frequency: Greater than 12 kHz.
Weight: 142 grams (5.0 oz), typical.
Diameter: 25.3 mm
Height: 63.2 mm
Case Material: 316L stainless steel.
Connector: 2-pin Mil-C-5015 hermeticallysealed, 316L stainless steel shell.
Mounting Torque: 32-46 kg cm (24-40 in-lb) max.
330500 Velomitor is a rugged, 2-pin, integrating piezo-accelerometer that is especially suited for condition monitoring of machines with rolling-element bearings and where vibration measurements in units of velocity are most useful.




✔ Ship the Same Day

✔ New and Original

✔ Large Stock
