Bently Nevada 3300/40-12-01-01-00-00 Eccentricity Monitor

PARAMETERS

Model: 3300/40-12-01-01-00-00

Condition: Brand new and Original

Origin Country: USA

Full-scale Range Option Peak-to-Peak Direct (pp): 1 2 0-200 µm pp, 200-0-200 µm
Transducer Input Option: 0 1 3300 or 7200 Proximitors® 200 mV/mil (8 V/mm).
Alarm Relay Option: 0 1 Epoxy-sealed
Agency Approval Option: 0 0 Not Required
Intrinsic Safety Barriers: 0 0 None
Input Impedance: 10 k Ω
Inputs Signal: Accepts two proximity probe signals, one for eccentricity and one for Keyphasor Input.
Operating Temperature: 0°C to +65°C (+32°F to +150°F).
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Outputs Recorder: User-programmable +4 to +20 mA, 0 to -10 Vdc, or +1 to +5 Vdc. Voltage or current outputs are proportional to programmed monitor full-scale. Individual recorder outputs are provided for the direct and the peak-to-peak channel. Monitor operation is unaffected by short circuits on recorder outputs.

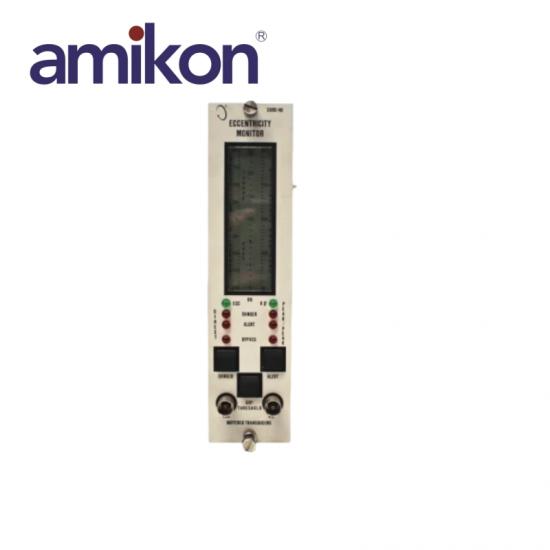

The 3300/40 Eccentricity Monitor provides on-line eccentricity monitoring. It allows you to identify the amplitude of thermal or gravity rotor bow. The monitor is suitable for virtually all types of rotating and reciprocating machinery, continuously measuring and monitoring one channel of eccentricity.

The monitor provides two types of eccentricity indication:
• Direct eccentricity: the instantaneous eccentricity value.
• Peak-to-peak eccentricity: the difference between the positive and the
negative extremes of the rotor bow.
