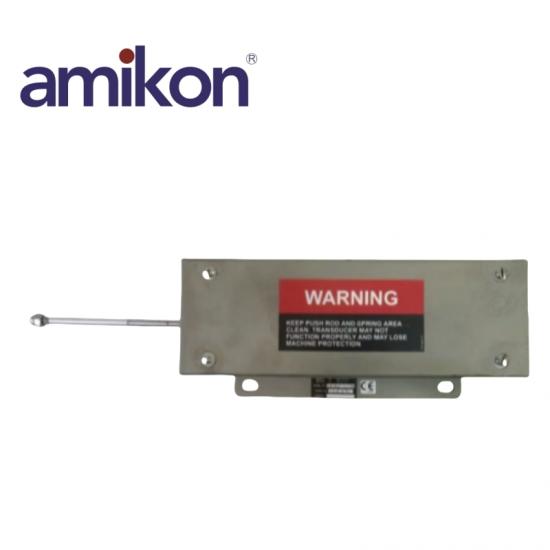

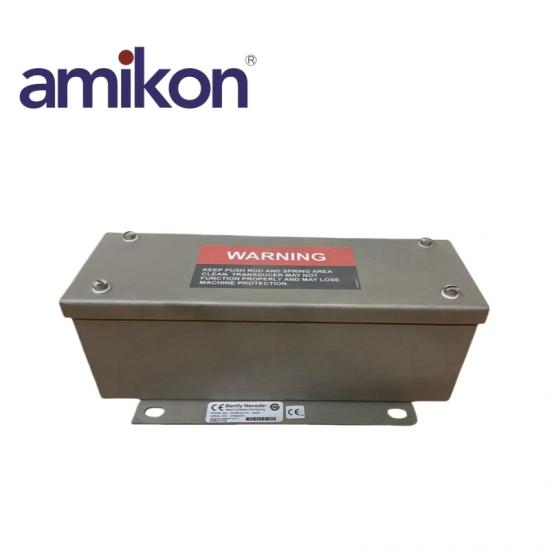

Bently Nevada 24765-01-01 Case Expansion Transducer Assembly
Leonia
Email: sales11@amikon.cn
Brand:
Bently NevadaItem NO.:
247650101Payment:
T/TProduct Origin:
United StateShipping Port:
Xiamen, ChinaLead Time:
In StockManufacturer:
Bently NevadaPart number:
24765-01-01Dimension:
88.9 mm*117 mm*241 mmWeight:
2.3KGWarranty:
12 MONTHS
Condition: Brand new and Original
Payment: T/T in advance
Warranty: 12 months
24765-01-01 | Bently Nevada | Case Expansion Transducer Assembly
Product Origin: USA
Manufacturer: Bently Nevada
Electrical Scale Factor:0.346 V/mm (8.79 V/in).
Linear Range: 25.4 mm (1.00 in).
-3 dB Frequency: 20 Hz.
Linearity: ±0.5% full-range.
Stability: 0.125% full-scale
Operating Temperature: -18 ℃ to +71 ℃
Storage Temperature: -54℃ to +93℃
Height: 88.9 mm (3.50 in).
Width: 117 mm (4.60 in).
Length: 241 mm (9.50 in).
Weight:2.3 kg (5.0 lbs)
Thread: 6-40 UNF-2B core end, 1/4-20 UNC-2A machine end.
Thermal Case Growth Measurements in Large Turbines An important position measurement in Turbine Supervisory Instrumentation (TSI) is case expansion. Case expansion (sometimes referred to as shell expansion) is the thermal growth of the machine case as it expands during machine startup and on-line operations. The case expansion transducer system is typically mounted on the foundation at the opposite end from where the turbine casing is attached to the foundation and provides information about the growth of the machine case relative to the foundation.
Case expansion is a parameter that you should use a dual transducer arrangement to measure. This arrangement provides information about the position of the sliding feet on the machine case. A condition that obstructs or jams one foot could distort the case and damage the machine. The dual case expansion transducer configuration in conjunction with the 3300 or 3500 monitors provides an alarm for this condition. The high temperature dual case expansion transducer configuration is compatible only with the 3500/45 Position Monitor.
