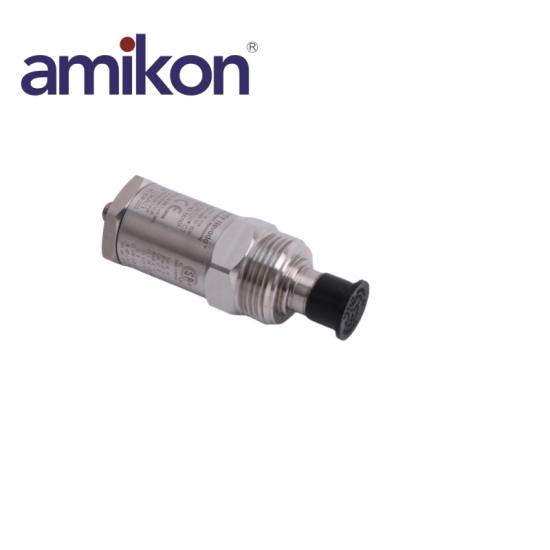

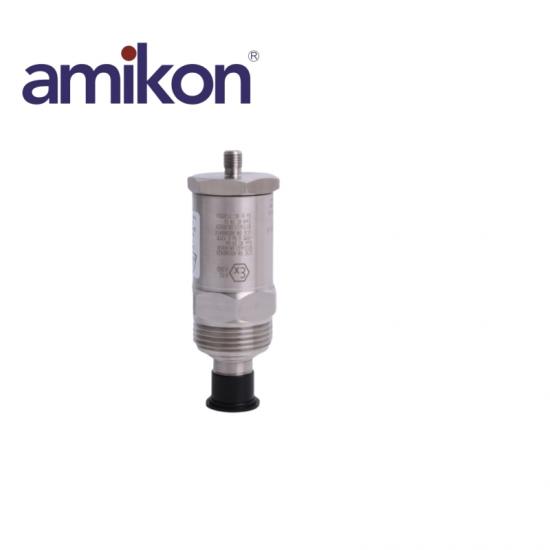

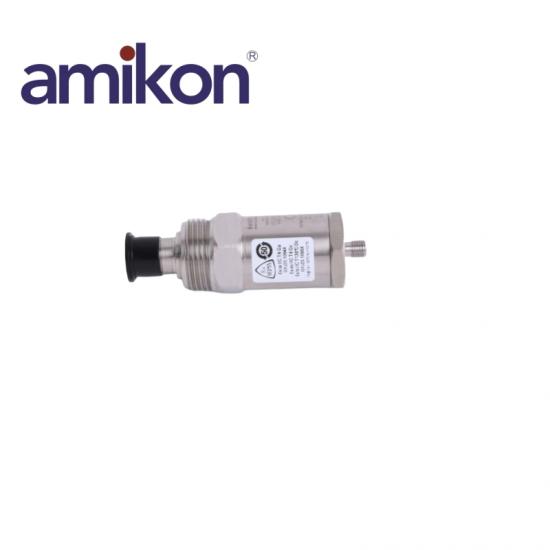

Bently Nevada 190501-12-00-00 Velomitor CT Velocity Transducer

 PRODUCT DESCRIPTION

Bently Nevada 190501-12-00-00 Velomitor CT Velocity Transducer

Condition: Brand New and Original

Origin Country: USA
Mounting Hardware Option: Plate Stud 3/8-in 24 to M8x1
Connection Option: MIL-C-5015 connection interface
Agency Approval Option: No Approvals
Operating Temperature: -40°C to +85°C (-40°F to +185°F).
Storage Temperature: -40°C to +100°C (-40°F to +212°F).
Sensitivity 3.94 mV/mm/s (100 mV/in/s) ±5%.
Frequency Response:  3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB; 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
Temperature Sensitivity：-8% to +5% typical over the operating temperature range
Weight: <297 g (10.5 oz.), typical.
Mounting Surface: 33 mm diameter (1.3 in diameter).
Height: 82 mm (3.2 in).
Case Material:  316L stainless steel
Connector:  2-pin 316L stainless steel MIL-C5015, top.
Mounting Torque: 4.5 N-m ±
The Velomitor CT Velocity Transducer is a low-frequency version of standard Velomitor Piezo-velocity Sensor.  Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).
The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
