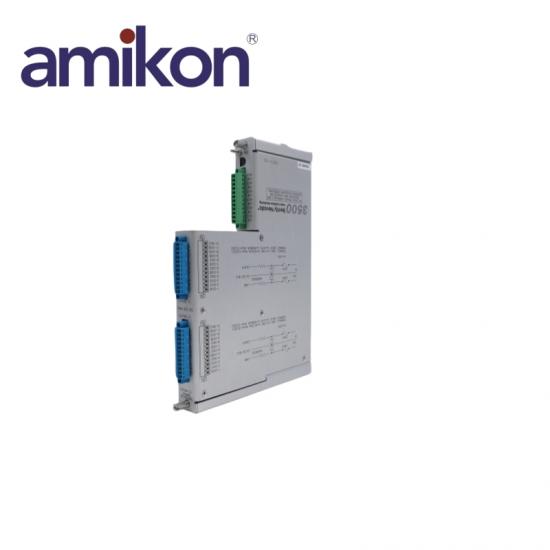

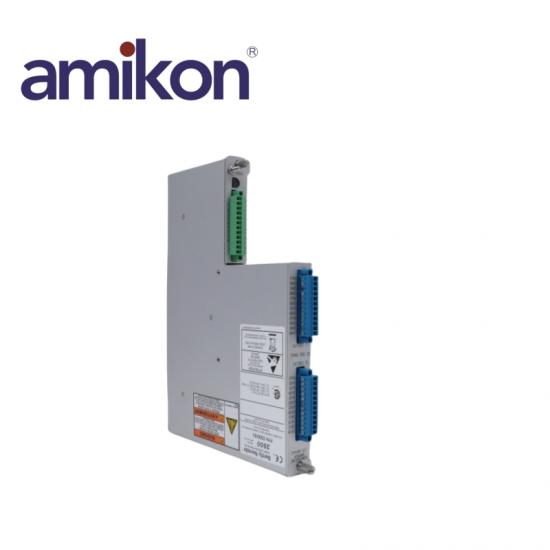

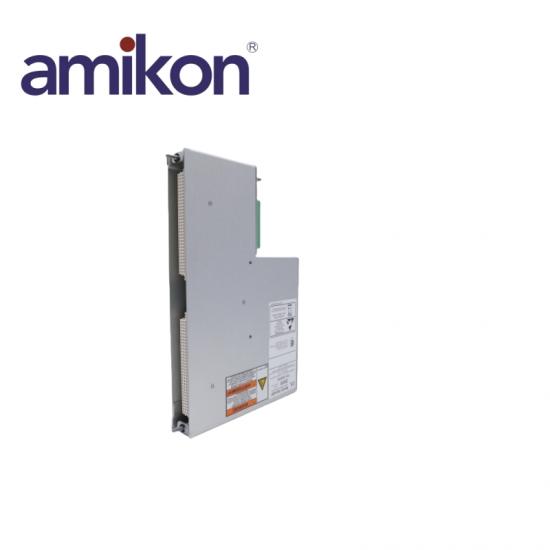

Bently Nevada 136711-02 | 3500/61 I/O Module with Internal Barriers and Internal Terminations

Product Information

Bently Nevada 136711-02 | 3500/61 I/O Module with Internal Barriers and Internal Terminations

Manufacturer : Bently Nevada
Product No. : 136711-02
Product Type : 3500/61 I/O Module with Internal Barriers and Internal Terminations
Made in U.S.A
Bandwidth : 30 kHz
Weight : 0.46 Kg
Dimensions: (Height x Width xDepth)241.3 mm x 24.4 mm x 163.1mm

Inputs Signal:  Accepts from 1 to 6 RTD or TC transducer signals.
Input Impedance: 10 MΩ for each lead input.
Power Consumption: 3500/61 Nominal consumption of 9 watts.

The 3500/61 module provides six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs.  The modules condition these inputs and compare them against user-programmable alarm setpoints.
3500/61 provide recorder outputs for each of its six channels.
The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software.  Different I/O modules are available in RTD/TC non-isolated or TC isolated versions.  The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.

100% full New!  ► Original Factory Seal
Warranty ► 12 months
Package ► Original packing with cartons.
Shipment ► We can ship to you by DHL/UPS/EMS/Fedex...

Payment Methods ► We can accept T/T.

Minimum Order ► Large Quantity Long-term Supply
