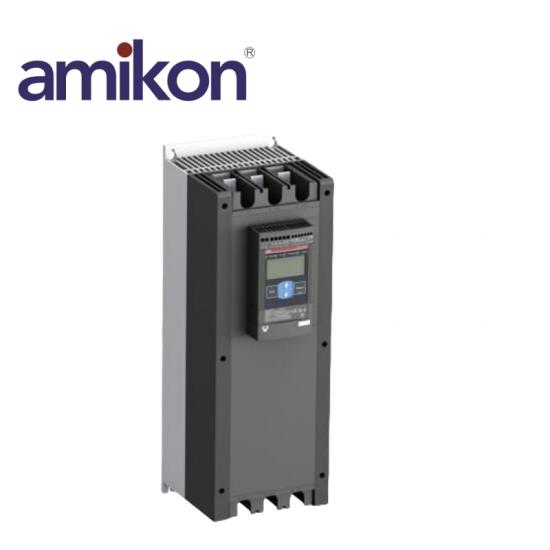

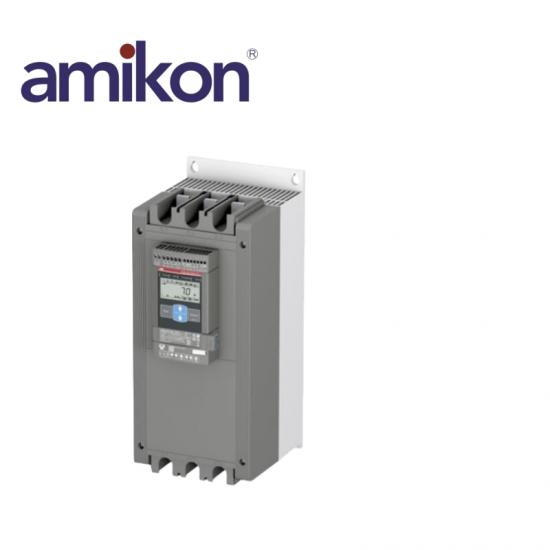

ABB PSE300-600-70 ▏1SFA897114R7000 Softstarter

Amikon Limited supplied 79,928,896 parts to 3,196,226 customers in 151 countries. Didn't find any products based on your search criteria?

If you can't find the parts you need, don't hesitate to contact us! ➱ Leonia, Email ➱ sales11@amikon.cn

Product Overview

Catalog : PSE300-600-70 Softstarter - 300 A - 208 ... 600 V AC
Long Description: Softstarter PSE300-600-70 for max 600V main voltage and 100 - 250V 50/60Hz control supply voltage.

Dimensions
Product Net Width: 190 mm
Product Net Height:550 mm
Product Net Depth / Length: 236.5 mm
Product Net Weight: 13.9 kg

Technical
Rated Operational Voltage: 208 ... 600 V AC
Rated Control Supply Voltage (Us): 100 ... 250 V AC
Rated Control Circuit Voltage (Uc): DC Operation 24 V
Rated Frequency (f): 50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 90 kW
(400 V) 160 kW
(500 V) 200 kW
Rated Operational Current - In-Line Connection (Ie): 300 A
Overload Protection: Build-in electronic overload protection
Integrated Electronic Overload: Yes
Adjustable Rated Motor Current Ie: 30 ... 100 %
Starting Capacity at Maximum Rated Current Ie: 4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start: 30 ... 70 %
Step Down Voltage Special Ramp: No %
Current Limit Function: 1.5 ... 7xIe
Switch for Inside Delta Connection: No
Run Signal Relay: Yes
By-pass Signal Relay: Yes
Fault Signal Relay: Yes
Overload Signal Relay: Yes
Analog Outputs: 4…20 mA
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: 10
Communication: FiledBusPlug(Optional)
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type: Main Circuit: Bars
Connecting Capacity Main Circuit: Hole Diameter 10.2 mm, Width and Thickness 20x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5 mm²
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 28 N·m
Supply Circuit 0.5 N·m

Environmental
Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
