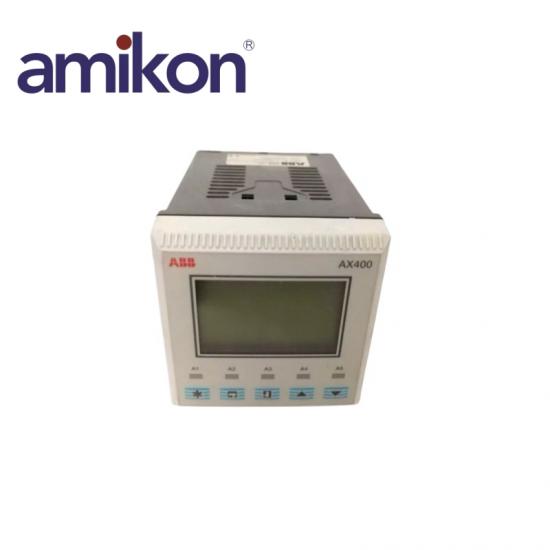

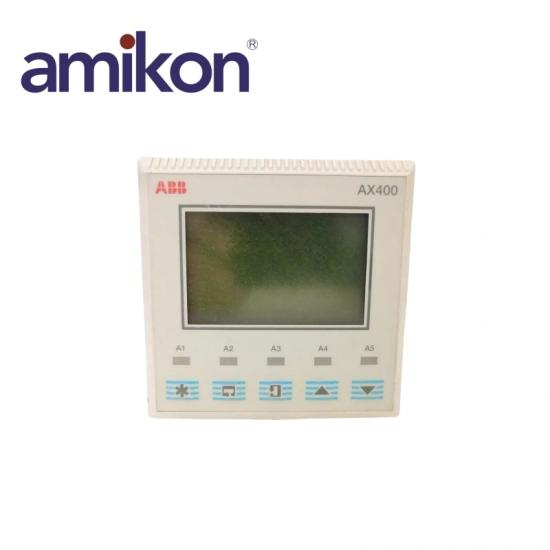

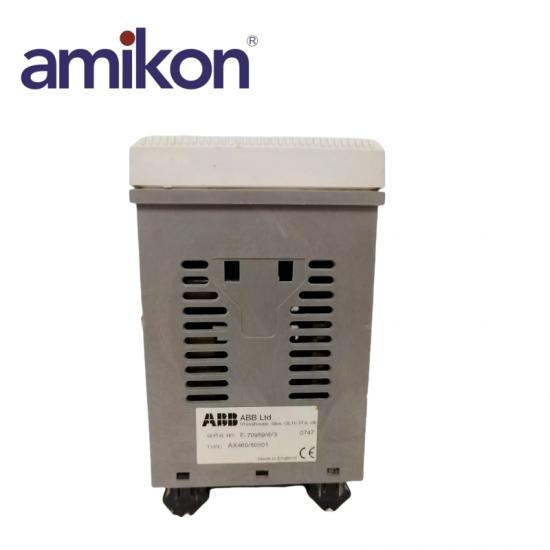

ABB AX460/50001 Dual Input Analyzer

ABB AX460/50001

Email me: sales11@amikon.cn

  • Brand:

    ABB
  • Payment:

    T/T
  • Product Origin:

    Sweden
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    In Stock
  • Part number:

    AX46050001
  • HS CODE:

    8537101190
  • Warranty:

    12 Months
Inquiry now
Product Detail

Contact Details


Leonia



E-mail:  sales11@amikon.cn      Skype: live:2435aba439730baa   Phone/ Whatsapp+8618030175807 (Wechat)



Product Details

Product ItemABB AX460/50001 Dual Input Analyzer

Origin: Sweden    Condition: Brand New and Original


Inputs
• One or two* pH or mV inputs and solution earth
• One or two* temperature sensors
• Enables connection to glass or enamel pH and
reference sensors and Redox (ORP) sensors
Input resistance
• Glass >1 x 1013Ω
• Reference 1 x 1013Ω
Range
–2 to 16 pH or –1200 to +1200 mV


Outputs

Number of current outputs (fully isolated)
Two supplied as standard or four with option board fitted
Output ranges
• 0 to 10, 0 to 20 or 4 to 20 mA
• Analog output programmable to any value between
0 and 22 mA to indicate system failure
Accuracy
±0.25 % FSD, ±0.5 % of reading (whichever is the greater)

Wall- / Pipe-mount versions
• IP65 (not evaluated under UL certification)
• Dimensions 192 mm high x 230 mm wide x 94 mm deep
(7.56 in. high x 9.06 in. wide x 3.7 in. deep)
• Weight 1 kg (2.2 lb.)
Panel-mount versions
• IP65 (front only)
• Dimensions 96 mm x 96 mm x 162 mm deep
(3.78 in. x 3.78 in. x 6.38 in. deep)
• Weight 0.6 kg (1.32 lb.)

Operating temperature limits:–20 to 55 °C (–4 to 131 °F)
Storage temperature limits: –25 to 75 °C (–13 to 167 °F)


AX400 analyzers incorporate the latest technology to provide highly reliable, flexible, feature-packed devices that satisfy a diverse range of process monitoring and control applications.
The complete range encompasses solutions for pH/Redox (ORP), conductivity and dissolved oxygen. AX46x analyzers enable continuous measurements of one or two pH or Redox (ORP) points with simultaneous local display and retransmission. AX46x is used with glass, enamel and
antimony pH electrodes and metal Redox sensors, providing measurements with exceptional accuracy and performance. AX400 series analyzers are available for either wall-/pipe- or panel-mounting and are rated to IP65.



About Shipping and Payment


Type of payment: T/T 100% Payment in Advance

Lead time: 2-3 working days

Quantity available: In Stock

Courier partners: DHL, UPS, TNT, FedEx and EMS

Warranty: Twelve months


To get our best price & fast quotation, pls send us e-mail now.
