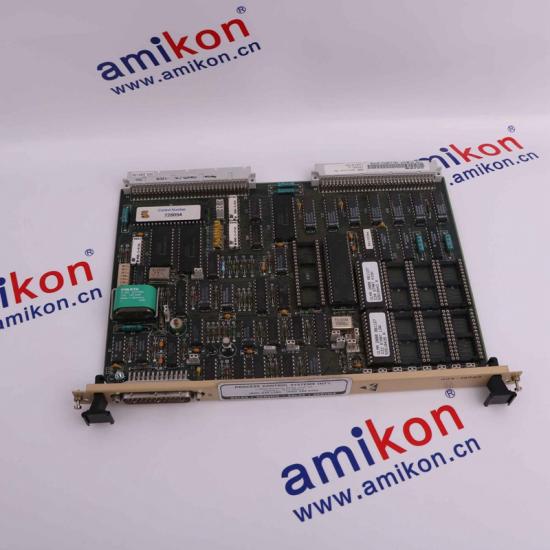

ABB 3HAC027325-001

   Welcome to contact me inquiry

Sales Manager :Yuki  / Phone: +8617359287459

Email: sales15@amikon.cn  / Skype:+8617359287459

ABB 3HAC027325-001

 ABB Drives

There are five ways to connect/integrate ABB Drives to the AC 800M series of
controllers:
• Via the S800 optical ModuleBus directly connected to the AC 800M controller.
– This is the standard way to connect single drives.
– Low cost integration of single drives.
– For both engineered drives and standard drives.
• Via the S800 I/O ModuleBus connected to CI801/CI840 that is connected via
PROFIBUS to the controllers.
– Engineering via process objects (function blocks and faceplates). Access
to the drive data via the process object.
– Only for standard drives.
• Via PROFIBUS DP and the specific adapters NDBU-12, RPBA-01 or FPBA01.
– For both engineered drives and standard drives.
– One NDBU-12, RPBA-01 or FPBA-01 is required per drive.
ABB Drives supplies the NDBU-12, RPBA-01 or FPBA-01.
– Engineering via process objects (function blocks and faceplates). Access
to the drive data via the process object.
• Via DriveBus using the DriveBus communication module CI858.
– The DriveBus interface is used for communication between ABB drives
and AC 800M controller.
– The DriveBus communication is especially designed for sectional drive
applications for ABB rolling mill drive systems, and ABB paper machine
control systems.
• Via PROFINET IO and the specific adapter RETA-02 or FENA-11.
– For both engineered drives and standard drives.
– One RETA-02 or FENA-11 is required per drive. ABB Drives supplies the
RETA-02 or FENA-11.
– Engineering via process objects (function blocks and faceplates). Access
to the drive data via the process object.
• Optical ModuleBus.
Max 12 ABB drives can be connected to the same cluster via the optical
ModuleBus. It is possible to connect up to 7 clusters to AC 800M, but the
performance and CPU load may limit the numbers. S800 I/O and ABB Drives
cannot be combined on the same cluster.
• PROFIBUS via CI854A/CI801/CI840.
The number of connected ABB drives via PROFIBUS is limited by the
parameters PROFIBUS-DP can handle. Refer to [11] in Table 1 on page 31 for
detailed information.

 We are biggest suppliers in China.

1. lower your support costs

2.Warranty: 12 months.

3.Lead time: 1-2 working days.

4.Type of payment: T/T

5.Courier partners: DHL, UPS, TNT, FedEx and EMS.

6.Technical specification, manuals and data sheets: Ava

7. Provide on-going availability of automation replacement parts

E-mail : sales15@amikon.cn

 Moore advantage items you`re interested in
