  CI862 and TP862 - TRIO/Genius Interface

The CI862 can be used in a redundant processor module configuration under the
following conditions:

a. If the CI862 is used with redundant
PM857/PM858/PM862/PM863/PM866/PM866A/PM867, only the TK850 CEX-bus
extension cable shall be used for interconnection between the PM866 modules.

The BC810/BC820 shall not be used.

b. If the CI862 is used with other redundant processor modules
(PM861A/PM864A/PM865), either BC810/BC820 or TK850 CEX-bus extension cable
can be used for interconnection between the two processor modules.

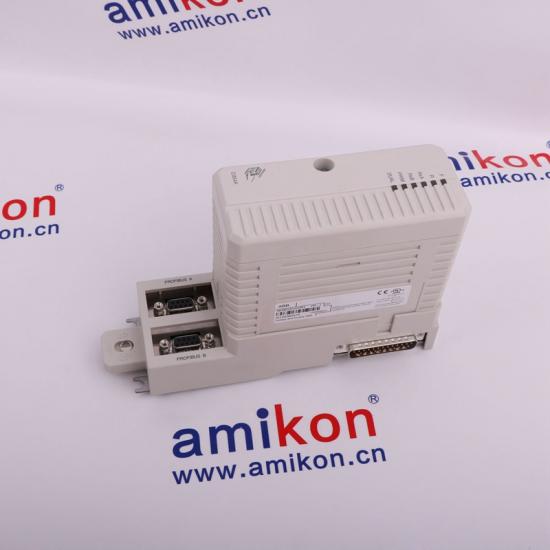

CI862 connects a TRIO Field Bus to the controller AC 800M. The connection between

CI862 and AC 800M is done via the CEX-Bus.

A single CI862 can connect 30 blocks to a single TRIO LAN. AC 800M can have up to

four single TRIO LANs. The maximum I/O with TRIO is 1000 I/O points.

TRIO blocks, are self-contained, configurable I/O blocks used to interface field devices

to the CI862 communications bus. These blocks can be individually installed on machines,

in junction boxes, or grouped in racks or panels. A TRIO block is made of cast aluminum,

and weighs approximately 1.8 kgs (4 pounds). It measures approximately 22.5 x 10 x 7.5 cm

(9 x 4 x 3 inches). Each block has its own communications capability and microprocessor,

and provides from 6 to 32 circuits for connecting input and output devices. You can place

blocks on the bus in any combination or sequence. You can use a mix of blocks on the same bus.
