Brand:
ABBPayment:
T/TMarket Price:
$123Price:
$66/123Product Origin:
SwedenColor:
As moduleShipping Port:
XiamenLead Time:
3-5 daysPart number:
3HAC021243-002HS CODE:
8537101190Warranty:
1 year

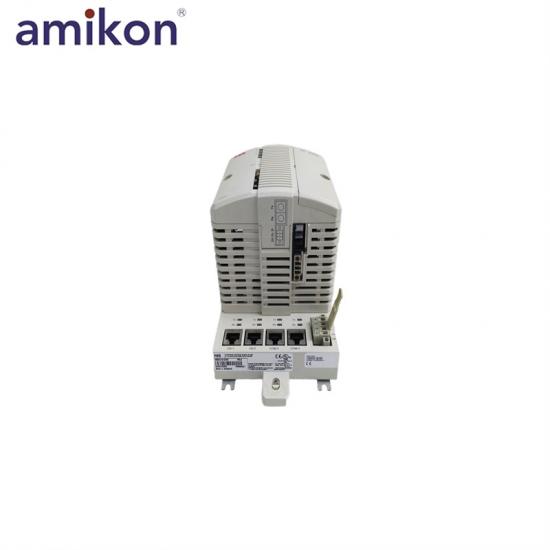

ABB 3HAC021243-002 ORIGINAL NEW AUTOMATION PARTS
Sales Manager :Yuki / Phone: +8617359287459
Email: sales15@amikon.cn / Skype:+8617359287459
Features

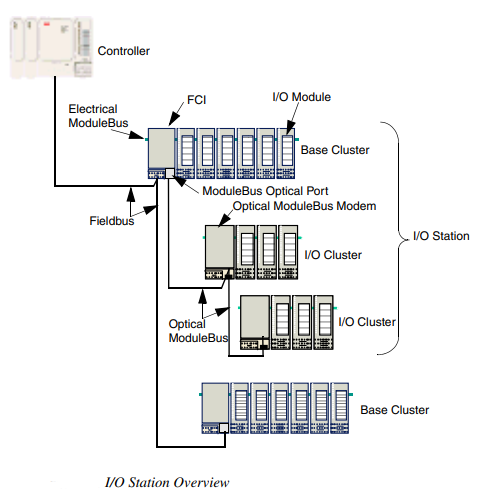

The major features of the S800 I/O system are:
• Communicates over PROFIBUS-DP/DPV1 or Advant Fieldbus 100.
• Quick faultfinding with help of LEDs of each module and channel.
• An extensive scope of Digital input/output modules and Analog input/output modules.
• Digital input/output modules and Analog input/output modules with Intrinsic Safety
interfaces.
• Mounted on standard DIN rails type NS 35/75 according to EN 50022.
• Support of dual redundancy in power supply, fieldbus connection and I/O channel.
• Support of fieldbus media supervision, bumpless change-over and failure reporting.
• All outputs can be individually set to freeze or to take on predefined values.
• Easy connection to drives systems, minimizing communication delays and cost.
• All modules have plastic injection molded enclosures which provide safety protection
degree IP20 according to IEC 529.
The plastic used is halogen free.
• I/O modules are protected from destruction by a mechanical keying arrangement if an
attempt is made to insert a module type in a position with a different key code than the
factory set code of the I/O module. Terminal units have keys which are set to key code
of its I/O module’s key code. (S800L I/O modules do not use Termination Units).
• An electrical ID is checked at start-up, if this does not match the configured type, the
I/O module is not taken into operation.
• Hot-swap of S800 I/O modules (except S800L modules) allowing replacement of faulty
modules without disconnecting field power or system power to the I/O-station.
• HART pass-through communication.
• I/O modules allow for 55oC ambient temperature except for vertical mounted Compact
MTU with I/O modules allow for 40o C ambient temperature.
• Support of connection to external Intrinsic Safety Barriers.
• High integrity I/O modules, IEC 61508 SIL3 certified.
• Hot Configuration In Run via Profibus.
• Coated modules, also compliant to ISA-S71.04 level G3 compliant modules.
• Galvanic isolation between process and system. Channel vise galvanic isolation is also
available.
• SOE support by time stamped events with resolution down to 0.4 ms. Available for
24/48/125 V d.c. digital inputs.
• Long distance distribution in star configuration.
We are biggest suppliers in China.
1. lower your support costs
2.Warranty: 12 months.
3.Lead time: 1-2 working days.
4.Type of payment: T/T
5.Courier partners: DHL, UPS, TNT, FedEx and EMS.
6.Technical specification, manuals and data sheets: Ava
7. Provide on-going availability of automation replacement parts
