>2711-T5A10L1 PanelView 550 Monochrome Terminal 5.5-inch


2711-T5A10L1
2711-T5A10L1 2711-T5A10L1 2711-T5A10L1

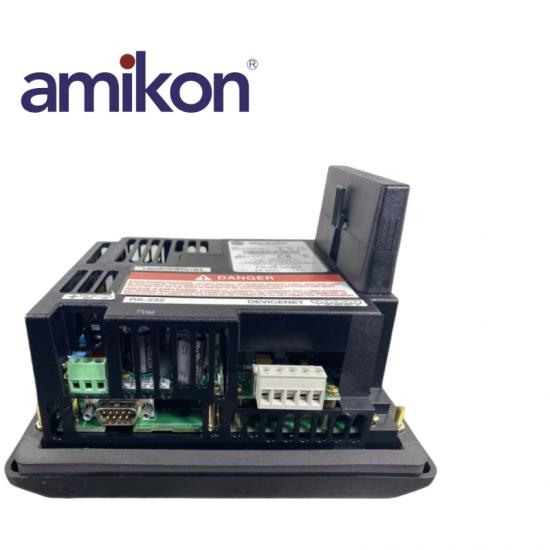

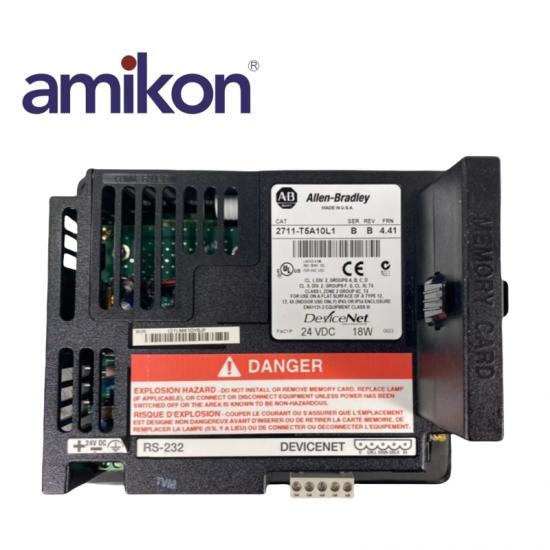

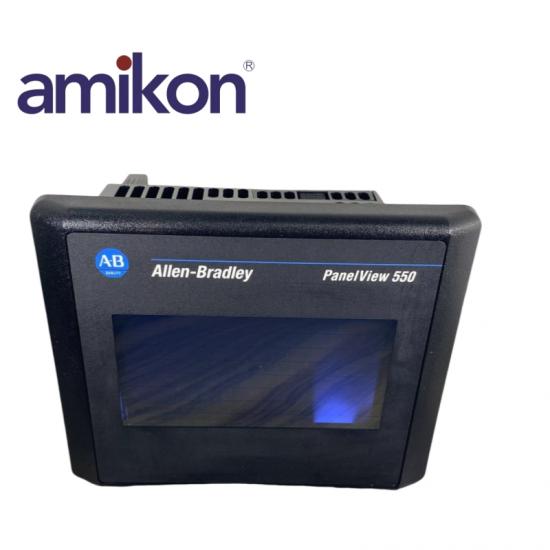

2711-T5A10L1 PanelView 550 Monochrome Terminal 5.5-inch

2711-T5A10L1 PanelView 550 Mono/Touch/DeviceNet/RS-232 Pr, DC

Leonia
Email:sales11@amikon.cn

  • Item NO.:

    2711-T5A10L1

  • Payment:

    T/T

  • Product Origin:

    United State

  • Shipping Port:

    Xiamen, China

  • Lead Time:

    In Stock

  • Part number:

    2711-T5A10L1

  • Warranty:

    12 Months
Inquiry now
Product Detail


PRODUCT DESCRIPTION

Condition: Brand New and Original

Origin Country: USA.

Warranty: 12 Months


Parameters
 2711-T5A10L1 is a PanelView 550 operator interface terminal designed to provide efficient control and monitoring in industrial automation systems. This compact and user-friendly device allows operators to interact with machines and processes through a clear and responsive touch screen interface.


Key Specifications:
Display: The 2711-T5A10L1 features a 5.5-inch monochrome LCD screen with a resolution of 128 x 64 pixels. This display size is sufficient for clear visualization of control graphics, status updates, and operational data.
Touch Screen: Equipped with an analog resistive touch screen, the terminal allows operators to easily navigate menus and control processes with a simple touch.
Communication Port: This model includes an RS-232 (DH-485) communication port, ensuring reliable data exchange between the terminal and connected controllers, such as PLCs.
Input Voltage: The terminal operates on a 24V DC power supply, making it compatible with standard industrial power systems.
Dimensions and Weight:
Dimensions: The 2711-T5A10L1 has a compact form factor, with dimensions of approximately 152 mm (6.0 in) in height, 185 mm (7.28 in) in width, and 82 mm (3.23 in) in depth. Its small size makes it suitable for installation in control panels where space is limited.
Weight: The terminal weighs around 1.5 kg (3.3 lbs), making it lightweight and easy to install and maintain.
Additional Features:
Memory: The terminal is equipped with 240 KB of user memory, which supports application storage and quick data access for fast and efficient operation.
Operating Temperature: Designed to operate in a temperature range of 0 to 55°C (32 to 131°F), the 2711-T5A10L1 is well-suited for various industrial environments.
Backlight: The terminal includes a replaceable backlight with an average life of 100,000 hours, ensuring long-lasting and reliable display visibility.
2711-T5A10L1 PanelView 550 terminal is a reliable and cost-effective solution for monitoring and controlling industrial processes. Its compact design, easy-to-use touch screen, and robust communication capabilities make it an ideal choice for small to medium-sized automation systems.
