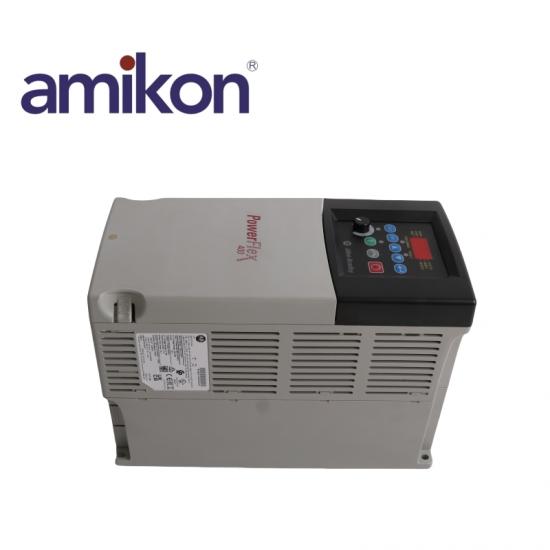

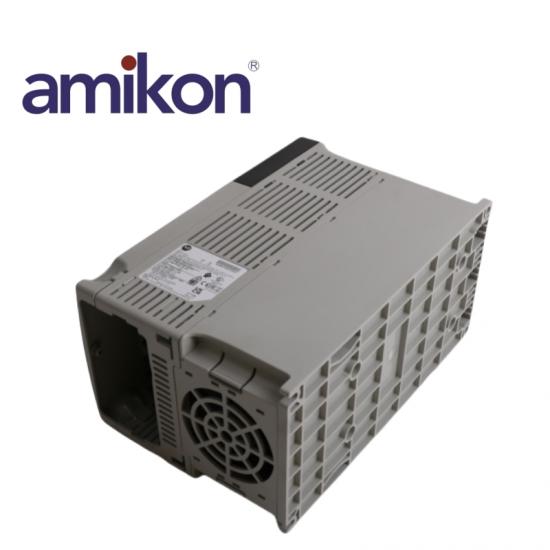

22B-D017N104 PowerFlex 40- 7.5 kW (10 HP) AC Drive

Product Part. : 22B-D017N104 PowerFlex 40- 7.5 kW (10 HP) AC Drive

Condition: Brand new and Original

Origin: USA

Warranty: 12 Months

22B-D017N104 is a PowerFlex 40 AC drive, designed to deliver reliable motor control in a variety of industrial applications. This drive is part of the PowerFlex 40 series, known for its compact size, ease of installation, and robust performance. Below are the detailed specifications:

• Input Voltage: 380-480V AC, 3-phase
• Output Power: 7.5 kW (10 HP)
• Output Current: 17 A
• Frequency Range: 0-400 Hz
• Control Method: Sensorless Vector Control, V/Hz
• Enclosure Type: IP20, NEMA/UL Type 1
• Overload Capacity: 150% for 1 minute
• Dimensions: 10.23 x 4.72 x 7.09 inches (260 x 120 x 180 mm)
• Weight: 9.3 lbs (4.2 kg)
• Communication Options: RS-485, optional communication modules for DeviceNet, EtherNet/IP, and Profibus
• Keypad: Integrated with a 4-digit display for parameter setting and monitoring
• Ambient Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Certifications: CE, UL, cUL, C-Tick, and RoHS Compliant

The 22B-D017N104 is ideal for applications requiring precise motor speed control and energy efficiency. It offers versatile connectivity options and is engineered to perform reliably in demanding industrial environments.
