2198-P208
2198-P208
Brand:
Other Hot-sellingsItem NO.:
2198-P208Payment:
T/TProduct Origin:
USColor:
As moduleShipping Port:
Xiamen，ChinaLead Time:
3-5 daysPart number:
2198-P208Dimension:
27.5x21.5x1.5cmWeight:
1kgHS CODE:
8538900000Warranty:
1 year
Name:Jim 丨 Tel:+86-592-5322116
Email:sales6@amikon.cn（SKYPE）丨 Mobile/Whatsapp:+86-18020776782
Description：

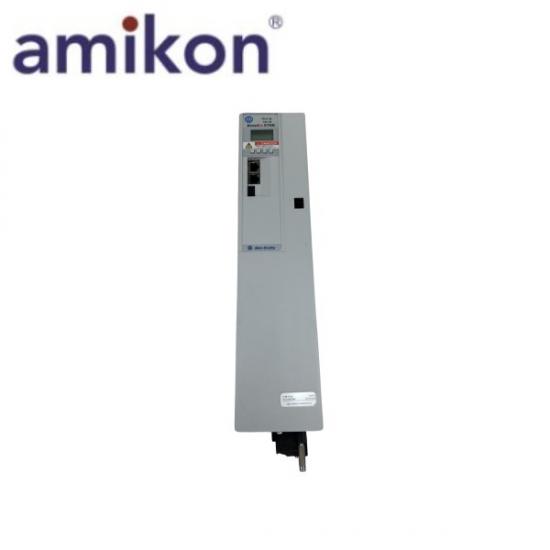

Description:The 2198-P208 is a DC-bus Power Supply for the Kinetix 5700 Servo Drive. It has three-phase 324 - 528V (480V nominal) RMS (root mean square) AC input voltage with a 47 - 63 Hz frequency. It has a module width of 85mm. It has 73.1 A main AC input current, 33A Max inrush (0-peak) current, and a 219.2A peak AC input current. Continuous and peak output current to the bus is 69.2A and 207.6A respectively. The continuous and peak output power to the bus is 46 kW and 138 kW respectively. It has an internal shunt resistance and shunt power of 13.5 Ohms and 200W respectively. It has 99% efficiency with 2050 µF internal capacitance and 453 J capacitive energy absorption.
