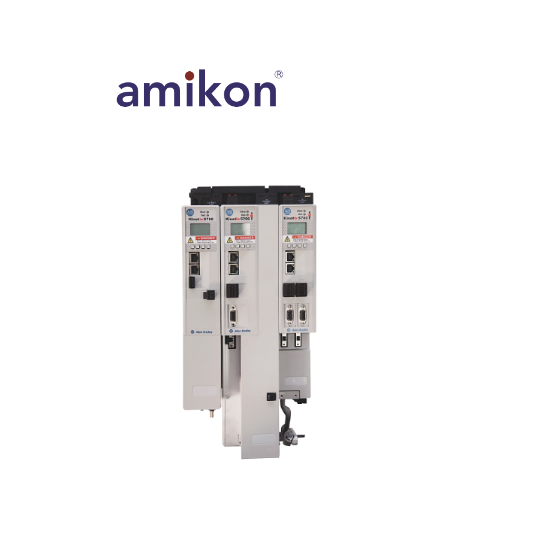

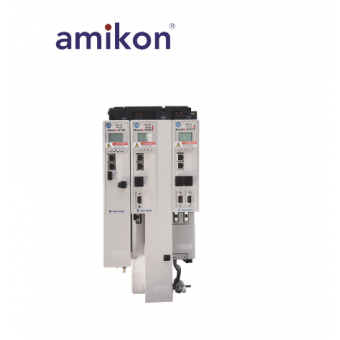

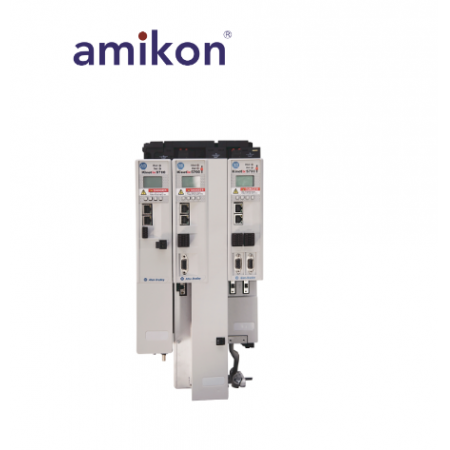

2198-D012-ERS3 Kinetix 5700 Dual-Axis Module 2 x 5A/3.2kW, 55mm
Inquiry: sales11@amikon.cn
Payment:
T/TProduct Origin:
USALead Time:
IN STOCKManufacturer:
Part number:
2198-D012-ERS3Weight:
4.16kgHS CODE:
8537101190Warranty:
12 month2198-D012-ERS3
CONTACT US
If you have any further questions, please don't hesitate to contact us.
Leonia
Email: sales11@amikon.cn | Phone: +86 18030175807
Skype: 18030175807 | Whatsapp: +8618030175807
DESCRIPTION
The 2198-D012-ERS3 is an axis module that is part of the Kinetix Ethernet I/P 5700 servo system. This servo drive is a dual-axis inverter with continuous output power of 1.7 kW at 240V input, and 3.4 kW @ 480V input. It has continuous output current of 7.0 A and continuous peak current of 17.6 A. It supports max. velocity loop of 400 Hz, Current loop of 1000 Hz and PWM frequency of 4 kHz.
Construction: Height 358 mm/ Width 55 mm/Depth 250 mm
ElectricalContinuous output current (rms) 5 A
Internal capacitance 165 µF
Peak output current (rms) 12.5 A
Rated power output 82 W @ 60%
Peak output current 17.6 A, zero to peak
Continuous output current 7 A, zero to peak
DC input current 5.3 A @ 458...747V DC
Bandwidth 400 Hz @ velocity loop, maximum
Continuous power output, nom 3.4 kW @ 195...264V rms, 1-phase
Control power current 5.5 A @ 24V DC current, maximum (with maximum brake current) PWM frequency 4 kHz
