2094-BC02-M02-S/D
2094-BC02-M02-S/D
Brand:
Other Hot-sellingsItem NO.:
2094-BC02-M02-S/DPayment:
T/TProduct Origin:
USColor:
As moduleShipping Port:
Xiamen，ChinaLead Time:
3-5 daysPart number:
2094-BC02-M02-S/DDimension:
15*15*10Weight:
1.0kgHS CODE:
8538900000Warranty:
1 year
Name:Jim 丨 Tel:+86-592-5322116
Email:sales6@amikon.cn（SKYPE）丨 Mobile/Whatsapp:+86-18020776782
Description：

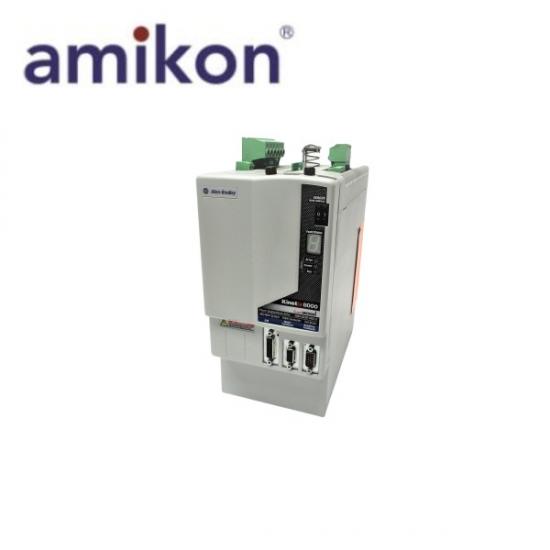

The 2094-BC02-M02-S is an Kinetix 6000 Integrated Axis Module (IAM).
This module has an input voltage rating of 324-528VAC, rms, 3-phase,
with nominal value of 360-480V nom with AC input frequency of 47-63 Hz.
The main AC input current of the 2094-BC02-M02-S is 24.0 Amperes,
nominal and maximum inrush current of 22.0 Amperes.
The module’s DC input voltage is 458-747VDC and DC input Current of 22.6 Amperes, both in common-bus-follower.
The control power AC input voltage of the 2094-BC02-M02-S is 95-264VAC, rms, 1-phase with nominal value of 110-240V, rms.
