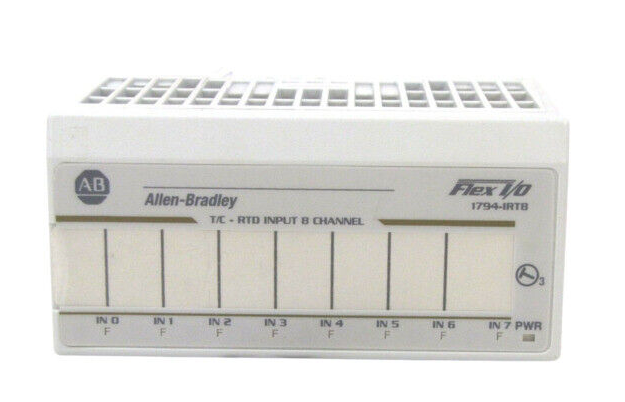

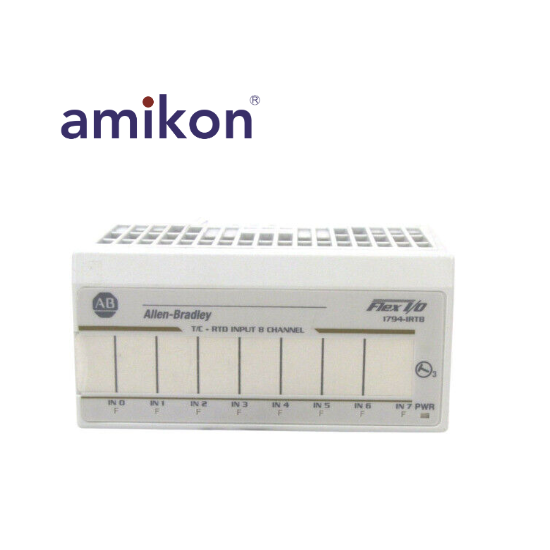

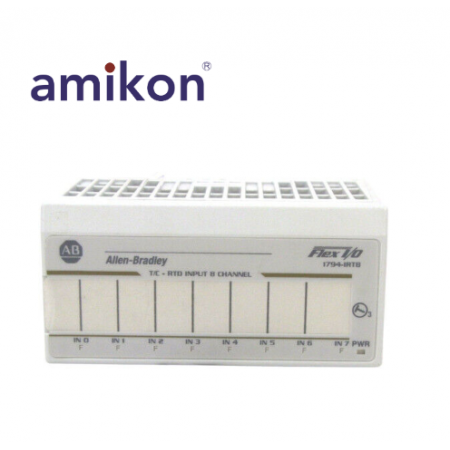

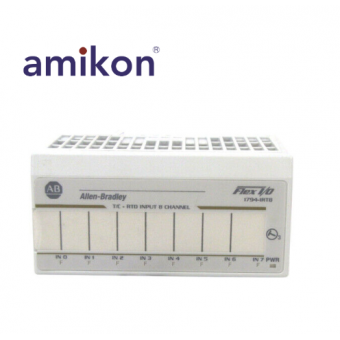

1794-IRT8 | Input Analog Module

Quick View

1794-IRT8 New Original Products

- made in USA

- Free 24 month warranty

- Ready for shipment. 3-5 days delivery time by DHL/Fedex/UPS

⇒⇒ Get the Price Now

Sales Manager: Leonia Huang
Email: sales11@amikon.cn

Cell: +86 18030175807 ( whatsapp )

Manufacturer : Original New

Product No. : 1794-IRT8

Product Type : FLEX I/O Thermocouple/RTD Input Analog Module

Number of inputs : 8 channels (2 groups of 4)

Module Location : Cat. No. 1794-TB3G, 1794-TB3GS, 1794-TB3GK Terminal Base Units

Nominal Input Voltage Ranges : -40…100 mV dc for thermocouples, 0…325 mV for RTDs

Resolution : 14 bits

Isolation voltage (continuous voltage withstand rating) : 50V (continuous), Basic Insulation Type. Type tested at 1365V AC for 60 s, between field side and system. No isolation between individual channels".

Flexbus current : 40 mA

Power dissipation : 3.0 W max @ 31.2V DC

Thermal dissipation : Max 10.2 BTU/hr @ 31.2V DC

Keyswitch position : 3

Indicators : 1 red/green power status indicator

Flexbus Current : 20mA

Relative humidity : IEC 60068-2-30 (Test Db, Unpackaged Damp Heat): 5…95% noncondensing

Vibration : IEC 60068-2-6 (Test Fc, Operating): 5 g @ 10…500 Hz

Figure 1 - Parts Illustration
