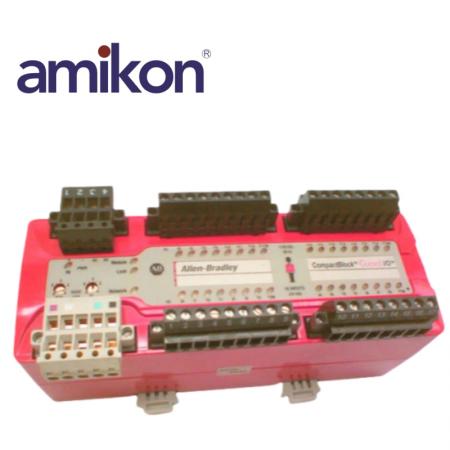

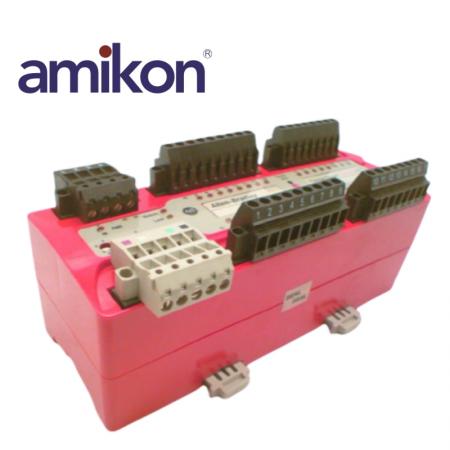

1791DS-IB16 Guard I/O 16 Point Digital Comb Module

     Sales Manager:  Leonia

           E-mail: sales11@amikon.cn

           Mobile /Whats app: +86 18030175807

           Skype: live:2435aba439730baa

PRODUCT PARAMETERS

Model number: 1791DS-IB16

Origin Country: USA

Condition: Brand new and Original

Weight: 0.45kg

DC Input Sink Module
Communication: DeviceNet
Input: 16 Point
Mounting: Din-rail
Power Supply: 24V DC
Sub Brand: CompactBlock Guard I/O
Temperature Rating: -20...60 °C (-4...140 °F)
Type: In-Cabinet
Response Time: Input Reaction Time: 16.2 MS + Set Values Of On/Off Delays
Sub Brand: Guard I/O™
Number Of Channels: 32 (16 Input, 16 Test Output)
Input: Safety Input - Voltage On-State Input: 11 VDC, Current On-State Input: 3.3 MA, Voltage Off-State Input: 5 VDC, Current Off-State: 1.3 MA, Pulse Test Output - Pulse Test Output Current: 0.7 A, Residual Voltage: 1.2 V, Output Leakage Current: 0.1 MA, Current: 25 MA
Voltage Rating: 19.2 - 28.8 VDC
Current Rating: Communication Current Consumption: 85 MA At 24 VDC
Isolation: 50 V (Continuous), Basic Insulation Type, Tested At 800 VDC For 60 SEC, Between Network And Input Channels
Enclosure: Open Type
