>1769SC-IF4IH Spectrum Controls 4-Ch Analog Current/Voltage Input Module w/HART


1769SC-IF4IH
1769SC-IF4IH 1769SC-IF4IH 1769SC-IF4IH

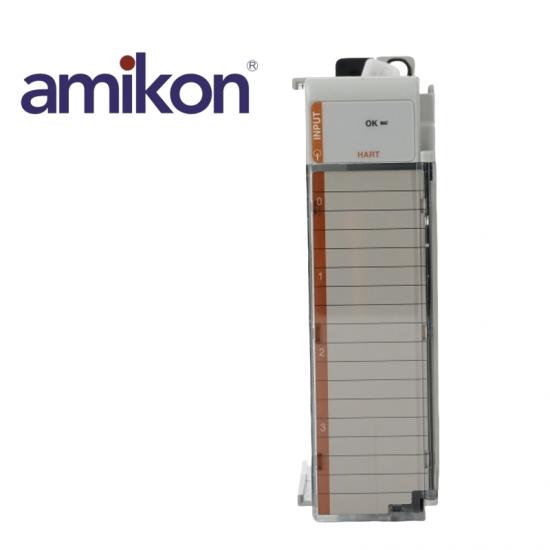

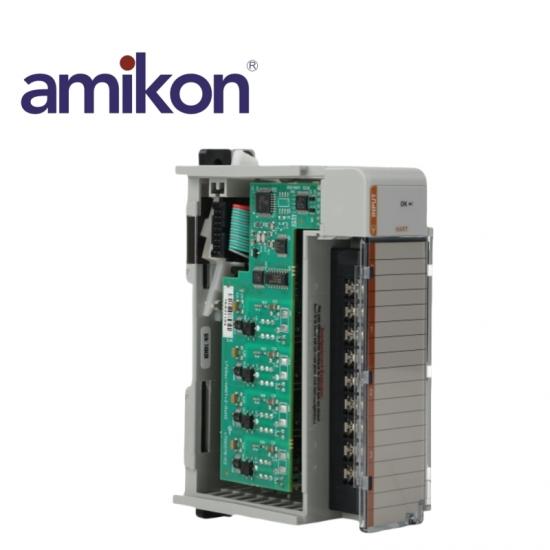

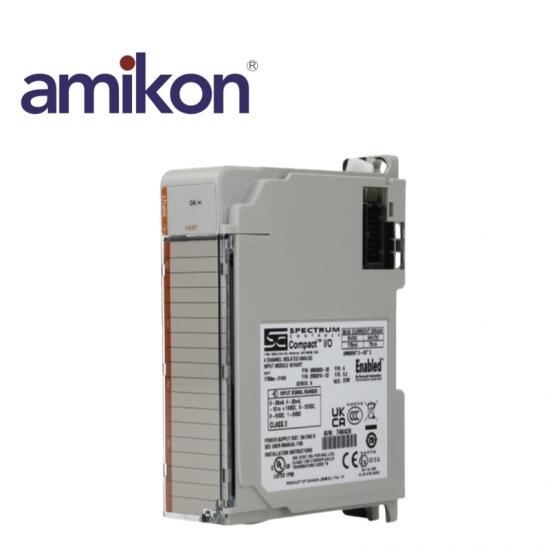

1769SC-IF4IH Spectrum Controls 4-Ch Analog Current/Voltage Input Module w/HART

1769SC-IF4IH Spectrum Controls 4-Ch Analog Current/Voltage Input Module w/HART

Leonia
Email:sales11@amikon.cn

  • Item NO.:

    1769SC-IF4IH

  • Payment:

    T/T

  • Product Origin:

    United State

  • Shipping Port:

    Xiamen, China

  • Lead Time:

    In Stock

  • Part number:

    1769SC-IF4IH

  • Dimension:

    118*87*35mm

  • Weight:

    0.3kg

  • Warranty:

    12 Months
Inquiry now
Product Detail


PRODUCT DESCRIPTION

Condition: Brand New and Original

Origin Country: USA.

Warranty: 12 Months


Parameters
1769SC-IF4IH is a high-performance analog input module designed for use with CompactLogix and MicroLogix 1500 controllers. This module is engineered to provide precise and reliable data acquisition for industrial automation systems, making it an essential component for processes requiring accurate analog input measurements.
Key Specifications:
Input Channels: The 1769SC-IF4IH module features 4 differential input channels, each capable of handling a variety of analog input signals.
Input Signal Range: Supports input signal ranges of ±10V, ±5V, 0-10V, 0-5V, and 4-20mA, providing flexibility for different sensor and signal types.
Resolution: Offers 16-bit resolution, ensuring high accuracy in analog signal conversion and data acquisition.
Conversion Rate: Capable of converting analog signals at a rate of 10 ms per channel, enabling fast and responsive data processing.
Input Impedance: The module has a high input impedance of 1 MΩ for voltage inputs and 250 Ω for current inputs, minimizing signal loading and ensuring accurate measurements.
Dimensions and Weight:
Dimensions: The 1769SC-IF4IH module has a compact design, measuring approximately 118 mm (4.65 in) in height, 87 mm (3.43 in) in width, and 35 mm (1.38 in) in depth. This compact form factor allows for easy installation in control panels and tight spaces.
Weight: The module weighs approximately 0.3 kg (0.66 lbs), making it lightweight and easy to handle during installation and maintenance.
Additional Features:
Isolation: Provides 500V DC isolation between input channels and backplane, ensuring signal integrity and protection from electrical noise.
LED Indicators: Equipped with status LEDs for each channel, offering visual confirmation of module operation and aiding in troubleshooting.
Operating Temperature: Designed to operate within a temperature range of 0 to 60°C (32 to 140°F), making it suitable for various industrial environments.
Mounting: The module is designed for DIN rail or panel mounting, allowing for flexible installation options.
1769SC-IF4IH analog input module is an essential component for capturing accurate analog signals in industrial automation systems. Its high resolution, fast conversion rate, and robust design make it ideal for applications requiring precise data acquisition and reliable performance in demanding environments.
