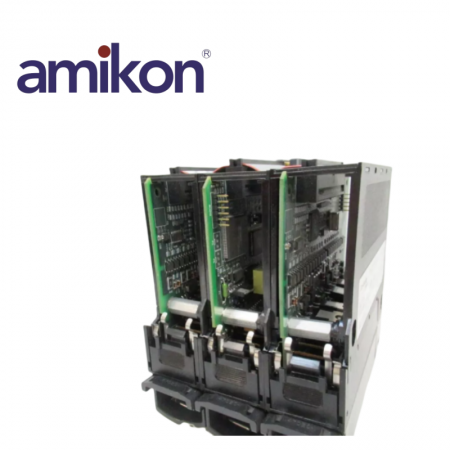

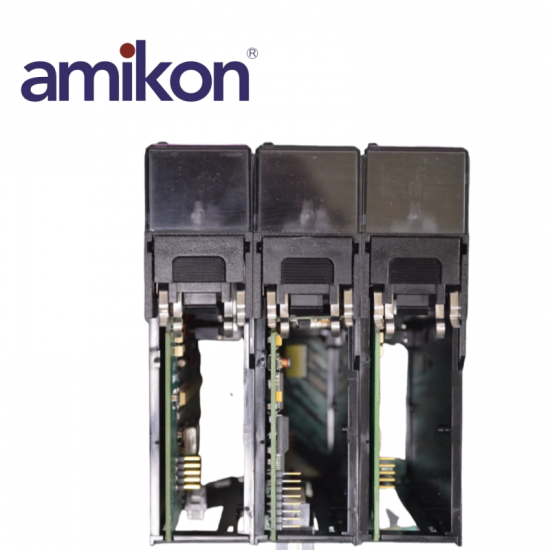

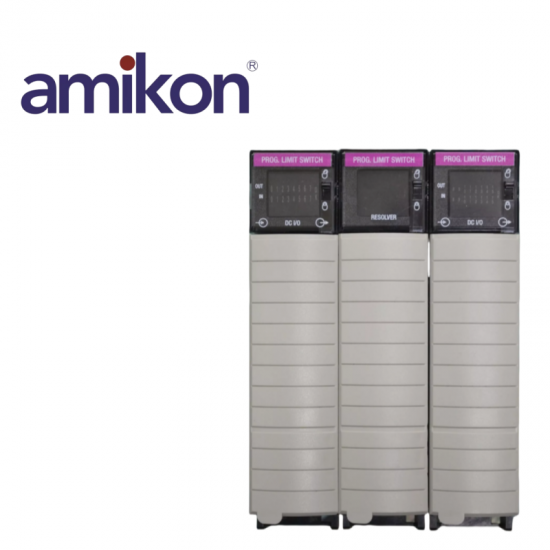

1756-PLS ControlLogix Programmable Limit Switch Module

1756-PLS

Origin Country: USA.

Warranty: 12 Months

Parts Delivered Worldwide  ( DHL/Fedex/UPS/TNT)

Call for Pricing

Email: sales11@amikon.cn      Tel/whatsapp: +8618030175807

Skype: live:2435aba439730baa

Part Number/Catalog No.: 1756-PLS
Series: ControlLogix
Module Type: Programmable Limit Switch Module
Inputs: 16
Outputs: 16
Output Signal: Digital Outputs: 10-31VDC
Operation Modes: 3 Contiguous Slots in Chassis
Backplane Current (5Volts): 1000 milliamps
Backplane Current (24 Volts): 125 milliamps
Power Dissipation (Max): 25.7 Watts at 30 Celsius, 21.3 Watts at 60 Celsius
Removeable Terminal Blocks: 3 RTBs, 1756-TBSH or 1756-TBNH
Dimensions: 5.51 x 4.41 x 5.71 inches
Operating Temperature: 32-140 Fahrenheit (0-60 Celsius)\Input Signal:
Resolver: 2V rms Reference Output (differential pair); 2V rms, Sine and Cosine Inputs (2 differential pairs); Digital Inputs: 11-31VDC
Isolation: 250 V continuous between groups
