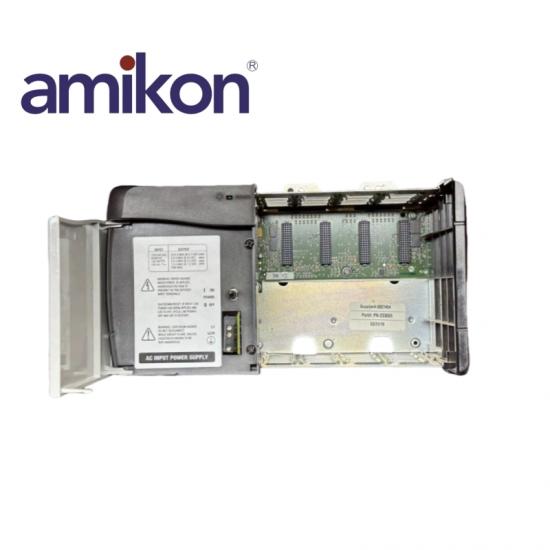

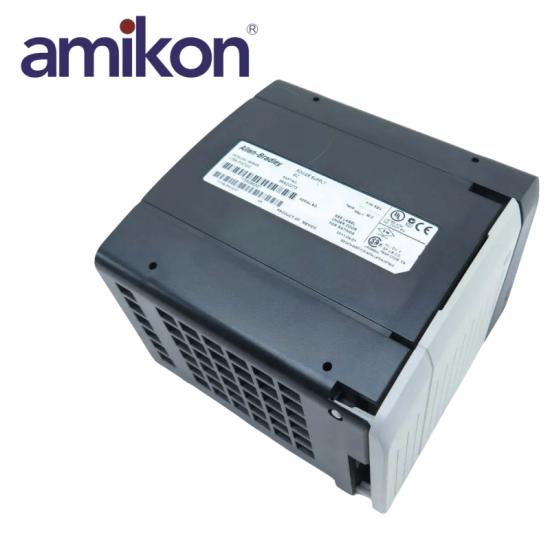

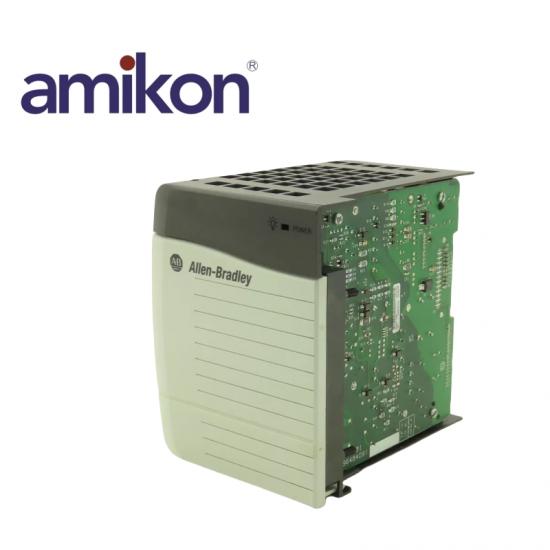

1756-PA72/C ControlLogix Power Supply ControlLogix Rack mount

Part number: 1756-PA72, C series

CONDITION: Brand New and Original

ORIGIN COUNTRY: USA.

PACKING: Packing is factory sealed

SHIPMENT: by air express ( DHL/Fedex/TNT/UPS )

Warranty : Fully serviced, 1 year warranty

Lead time: 1-2 working days

Call For Best Price

Contact: Leonia  Huang                       Email: sales11@amikon.cn

Tel/whatsapp:+86-18030175807         Skype/wechat: live:2435aba439730baa

Technical Specifications

Dimensions: 14.0 x 11.2 x 14.5 cm
Weight: 0.95 kg
Module Type: Standard DC Power Supply
Series: ControlLogix
Nom Input Voltage: 120/240VAC
Input Voltage Range: 85-265VAC
Isolation Voltage: 250 Volts Continuous
Max Inrush Current: 30 Amperes
Current Capacity: 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC
Hold Up time: 5 cycles @ 85V AC, 50/60 Hz 6 cycles @ 120V AC, 50/60 Hz 6 cycles @ 200V AC, 50/60 Hz 6 cycles @ 240V AC, 50/60 Hz

The 1756-PA72 is a ControlLogix Standard Power Supply. This Power Supply has an input Voltage of 85-265VAC with Nominal supply of 120V/240VAC. It has a Current capacity of 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F).
The 1756-PA72 is a Standard Power Supply that is mainly used to deliver power to the backplane of a 1756 ControlLogix chassis, enabling each of module attached to the chassis to operate. The 1756-PA72 is designed to accept an input voltage range of 85-265 VAC with frequency range of 47-63 Hz. It delivers an output power of 75 W @ 0-60 °C (+32…+140 °F) with Current capacities of 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC.
