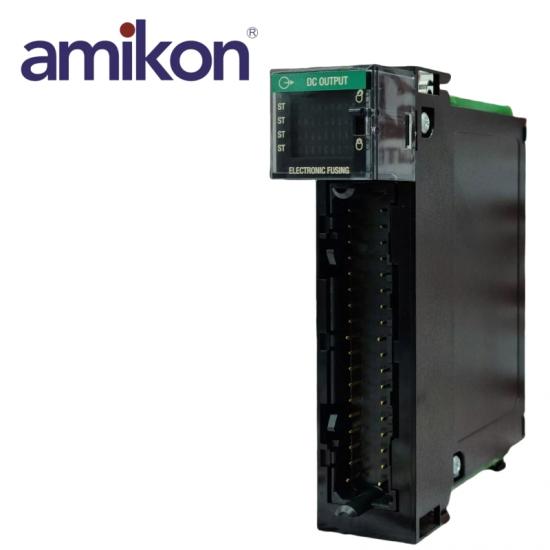

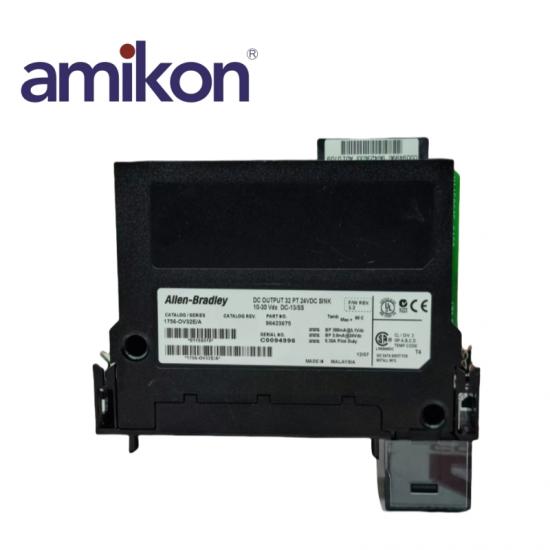

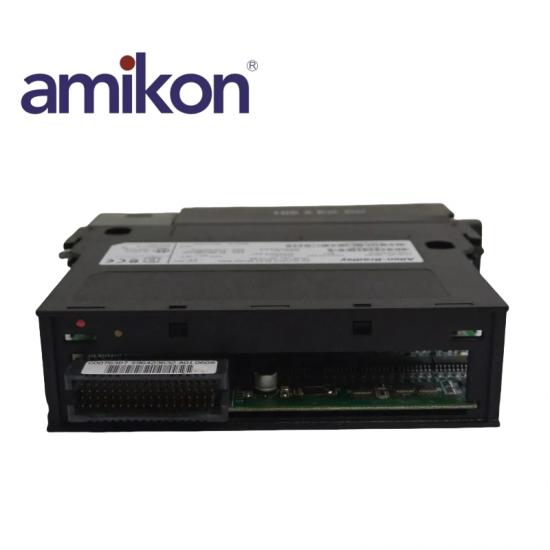

1756-OV32E ControlLogix 32 Point D/O Module

Part number: 1756-OV32E ControlLogix

PACKING: Packing is factory sealed

SHIPMENT: by air express ( DHL/Fedex/TNT/UPS )

Warranty : Fully serviced, 1 year warranty

Lead time: 1-2 working days

Condition: Brand New and Original

Origin Country: USA.

Call For Best Price

Contact: Leonia  Huang                       Email: sales11@amikon.cn

Tel/whatsapp:+86-18030175807         Skype: live:2435aba439730baa

Technical Specifications

The 1756-OV32E is a ControlLogix electronically fused sinking output module manufactured by . It has ratings of 12 to 24 Volts DC sink voltage, 10 to 30 Volts DC operating voltage, 5 to 8 Amps of current per group at 50 degrees Celsius, 390 milliamps of current draw at 5.1 Volts, 2.04 watts of backplane power, 20.1 BTU/hour of thermal dissipation, 2 milliamps of current draw at 24 Volts , 75 microseconds to 200 microseconds of OFF to ON maximum output delay time and 230 microseconds to 1 milliseconds of ON to OFF maximum output delay time. It features 32 electronically fused outputs to protect the module against overcurrent and it is ideal for communicating between controllers and other devices in a ControlLogix system.

ControlLogix 32 Point D/O Module

Description: Output Module | ControlLogix

Enclosure type: None (open-style)

Product Type: DC (10...30V) Electronically Fused, Sinking Output

Product Series: 1756 ControlLogix I/O Modules

Outputs: 32 Electronically Fused (16 points/group)

Voltage category: 12/24V DC sink

Operating voltage range: 10...30V DC

Current draw @ 5.1V: 390 mA

Current draw @ 24V: 2 mA

Total backplane power: 2.04 W

Power dissipation, max: 5.88 W @ 60 C (140 F)

Thermal dissipation: 20.1 BTU/hr

Off-state leakage current per point, max: 1 mA per point

On-state voltage drop, max: 350 mV DC @ 0.5 A

Load current, min: 2 mA per output

Isolation voltage: 250V (continuous), No isolation between individual group outputs
