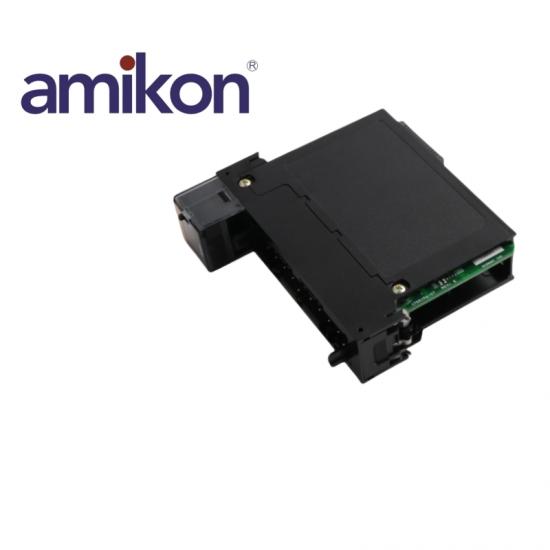

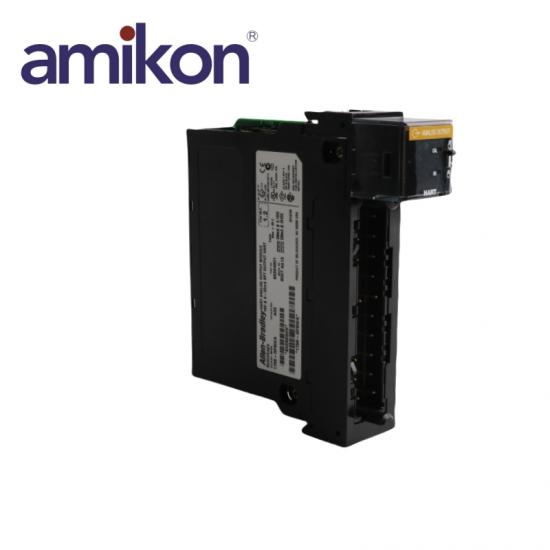

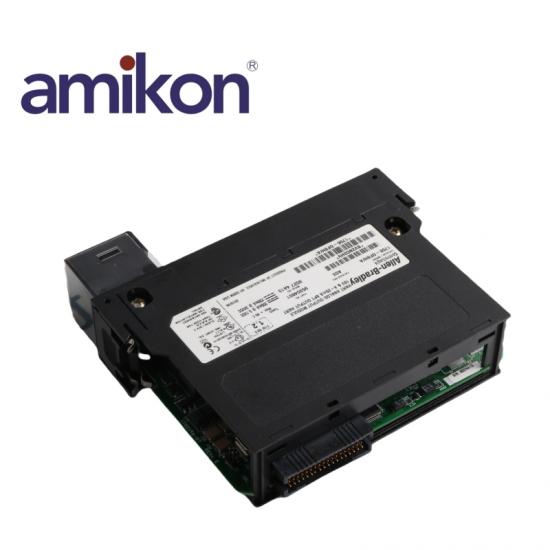

1756-OF8H ControlLogix 8 Pt A/O I or V HART Module

1756-OF8H

Origin Country: USA.

Warranty: 12 Months

Parts Delivered Worldwide  ( DHL/Fedex/UPS/TNT)

Call for Pricing

Email: sales11@amikon.cn      Tel/whatsapp: +8618030175807

Skype: live:2435aba439730baa

1756-OF8H

Catalog #: 1756-OF8H ControlLogix 8 Pt A/O I or V HART Module
ETIM: EC001420
Controller: Auxiliary Products
Display: Module Health, In Calibration Mode
Enclosure: None (open-style)
GX rating: None
Isolation: None between channels (Single Ended)
Mounting: Chassis
Operating Temperature: 0...60 °C (32...140 °F)
Output Signal: +/- 10.4V, 0-20 mA, 4-20 mA
Removable Terminal Block: 1756-TBNH or 1756-TBSH
Special Features: Supports HART Protocol
Sub Brand: ControlLogix
Type: Analog Output Module
Surrounding air temperature, max 60 °C
North American temperature code T4
Emissions
Emissions: IEC 61000-6-4
Relative humidity: 5...95% noncondensing
Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
ESD immunity: 6 kV contact discharges, 8 kV air discharges
EFT/B immunity: ±2kV at 5 kHz on signal ports
Relative humidity: 5...95% noncondensing
Surge transient immunity: ±2kV line-earth (CM) on shielded ports
Operating temperature: 0 °C <Ta <60 °C (32 °F <Ta <140 °F)
Nonoperating temperature: -40 °C
